Replacement and Adjustment
D454 16 SM

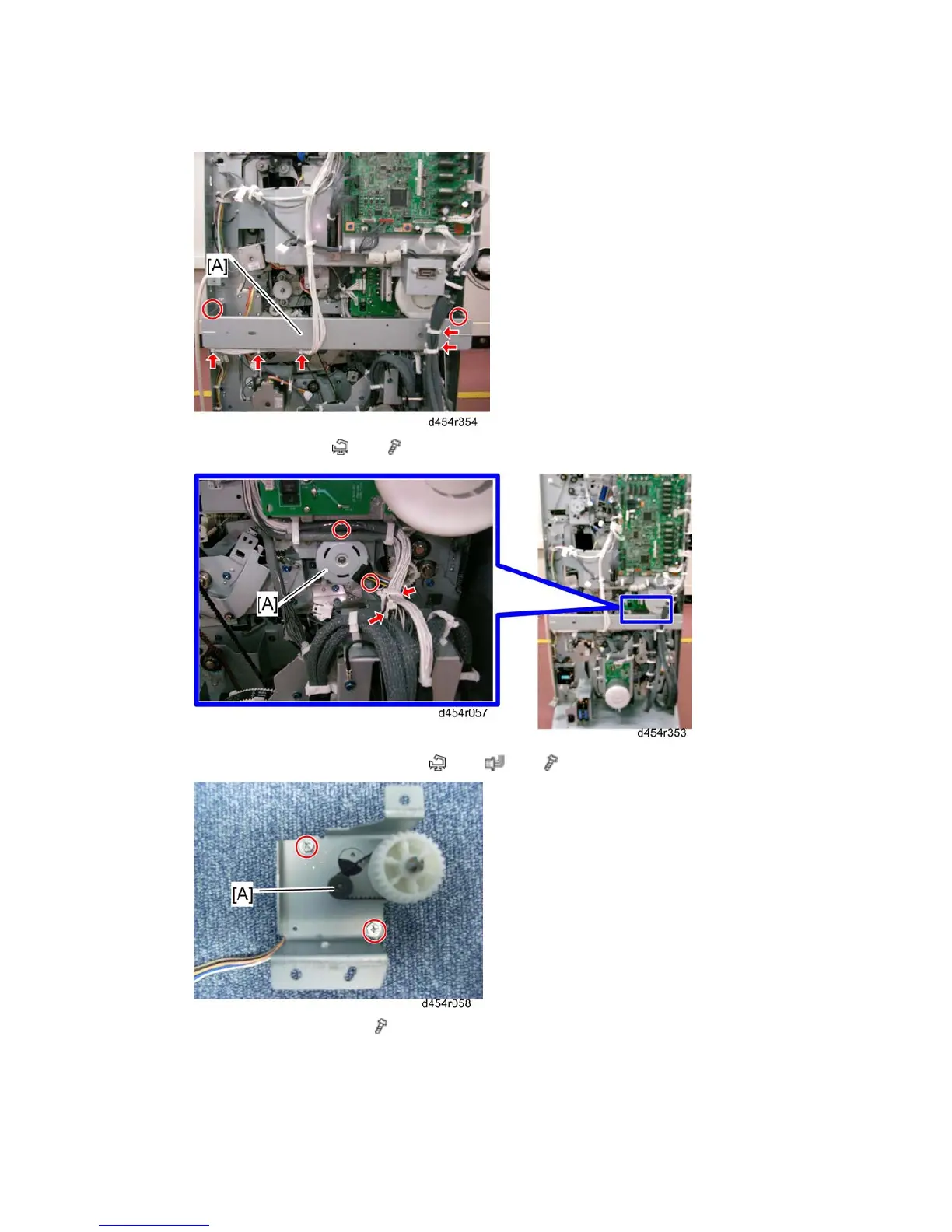

3. Rear lower stay [A] ( x 5, x 2)
4. Direct-Send JG motor bracket [A] (
x 1, x 1, x 2)
5. Direct-Send JG motor [A] (
x 2)
