Cover Interposer Tray (B704)
D062/D063/D065/D066 2-78 SM
Docking the Finisher and Interposer to the Machine (D373/D374/D460)

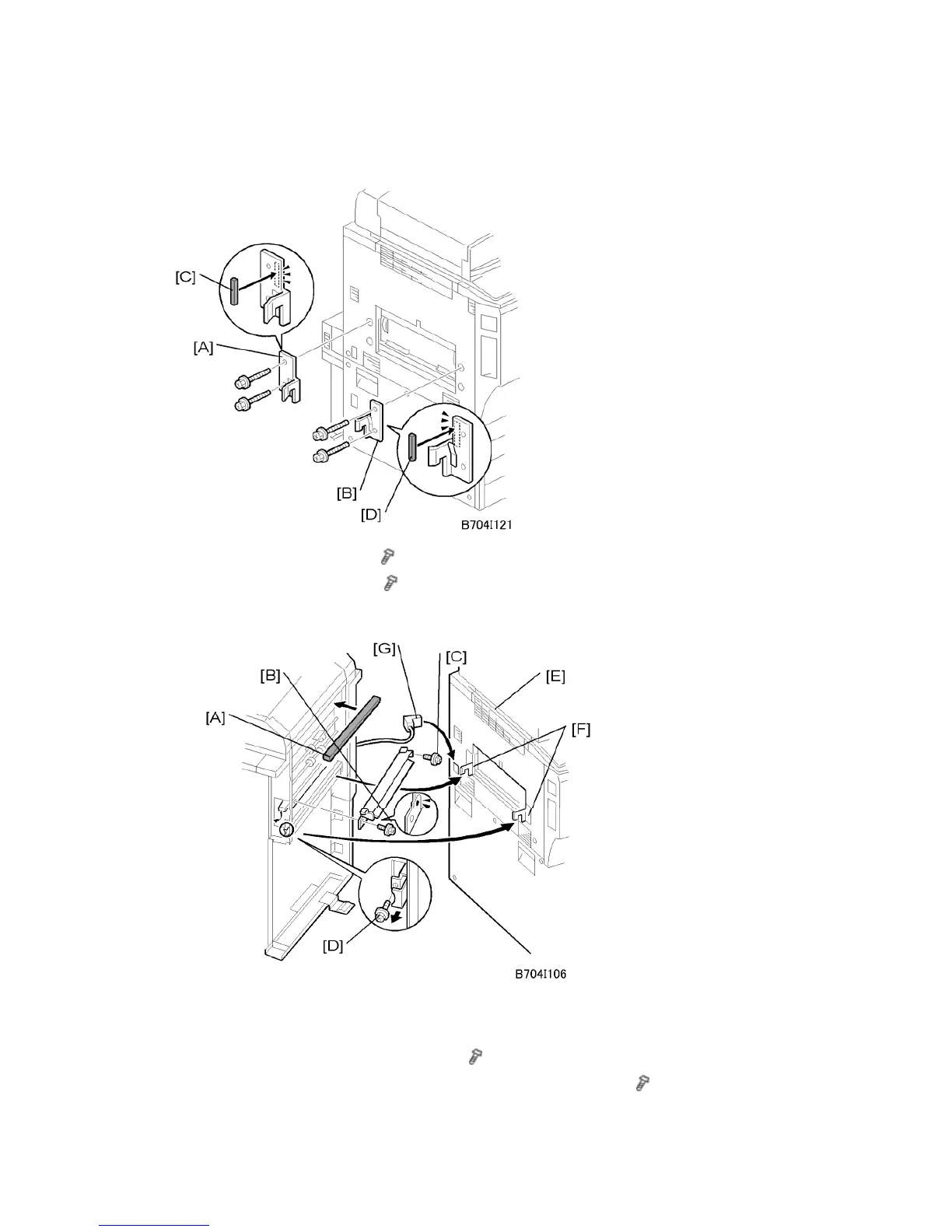

1. Attach the rear bracket [A] (
x 2, M4 x14).
2. Attach the front bracket [B] (
x 2, M4 x14).
3. Attach the gasket seals [C] and [D].
4. Attach the sponge strip [A] that is supplied with the finisher.
5. Attach the guide plate (removed from the finisher) to the cover interposer.
Attach the front end [B] of the plate (
x 1).
Attach the rear end of the plate with the anti-static brush [C] (
x 1).
