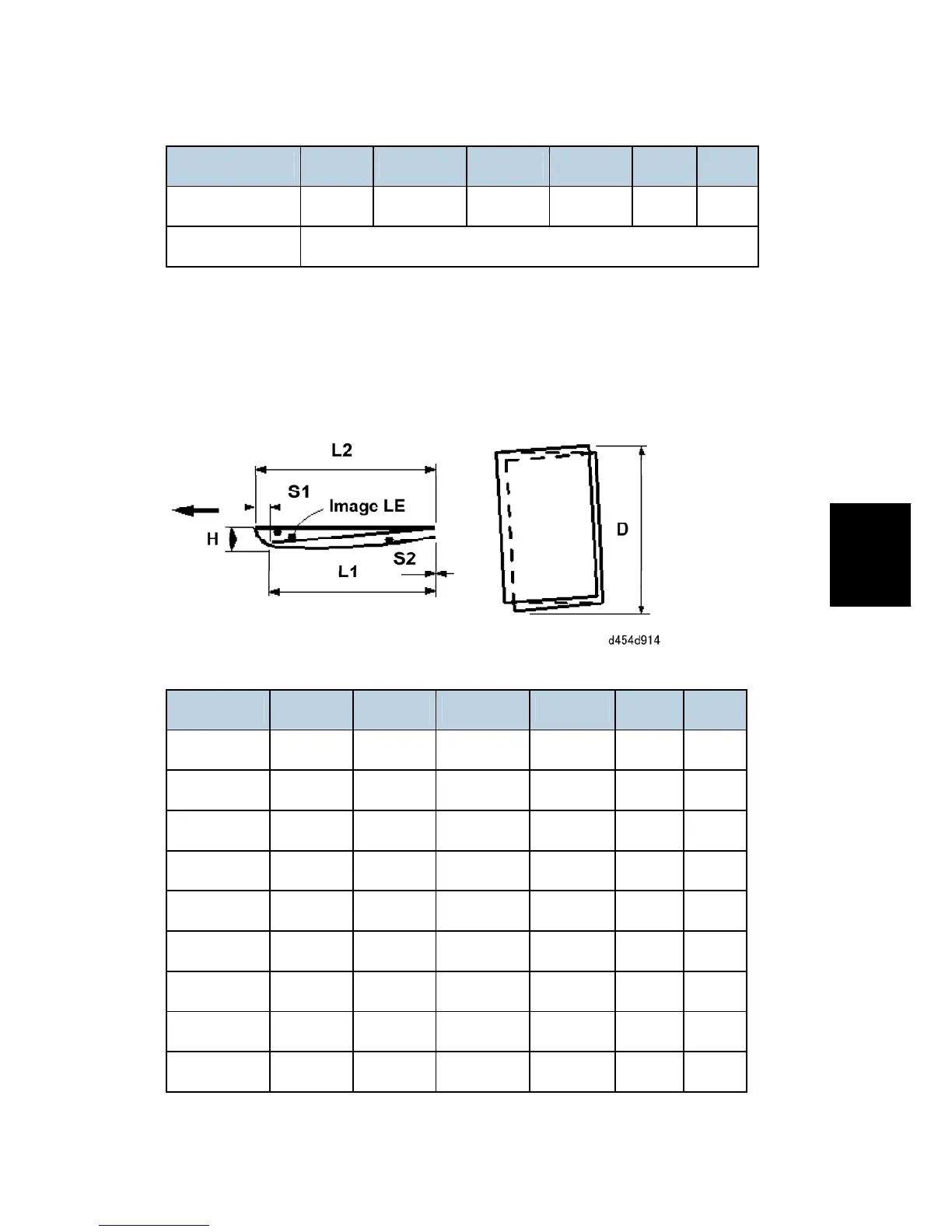

Fold Adjustments
SM 71 D454
Multi-Folding
Unit FD5000
D454
Size Setting Default Range Setting Default Range
Other S1 2 mm 2 to 7 mm --- --- ---
Pitch Adj.
1 mm
Engine SP Adjustment
The following fine adjustment of "L1" and "L2" can be done by the customer engineer in the
SP mode.
Size Setting Default Range Setting Default Range
A3 SEF L1 0 mm ±4 mm S1 0 mm ±4 mm
B4 SEF L1 0 mm ±4 mm S1 0 mm ±4 mm
A4 SEF L1 0 mm ±4 mm S1 0 mm ±4 mm
B5 SEF L1 0 mm ±4 mm S1 0 mm ±4 mm
DLT L1 0 mm ±4 mm S1 0 mm ±4 mm
LG L1 0 mm ±4 mm S1 0 mm ±4 mm
LT SEF L1 0 mm ±4 mm S1 0 mm ±4 mm
12"x18" L1 0 mm ±4 mm S1 0 mm ±4 mm
8-Kai L1 0 mm ±4 mm S1 0 mm ±4 mm
