Ricoh Aficio MP 8001 Service Manual

Paper Path
SM 91 D454
Multi-Folding
Unit FD5000
D454
2.2.2 PRE-STACKING
Up to three sheets of paper can be pre-stacked for folding.

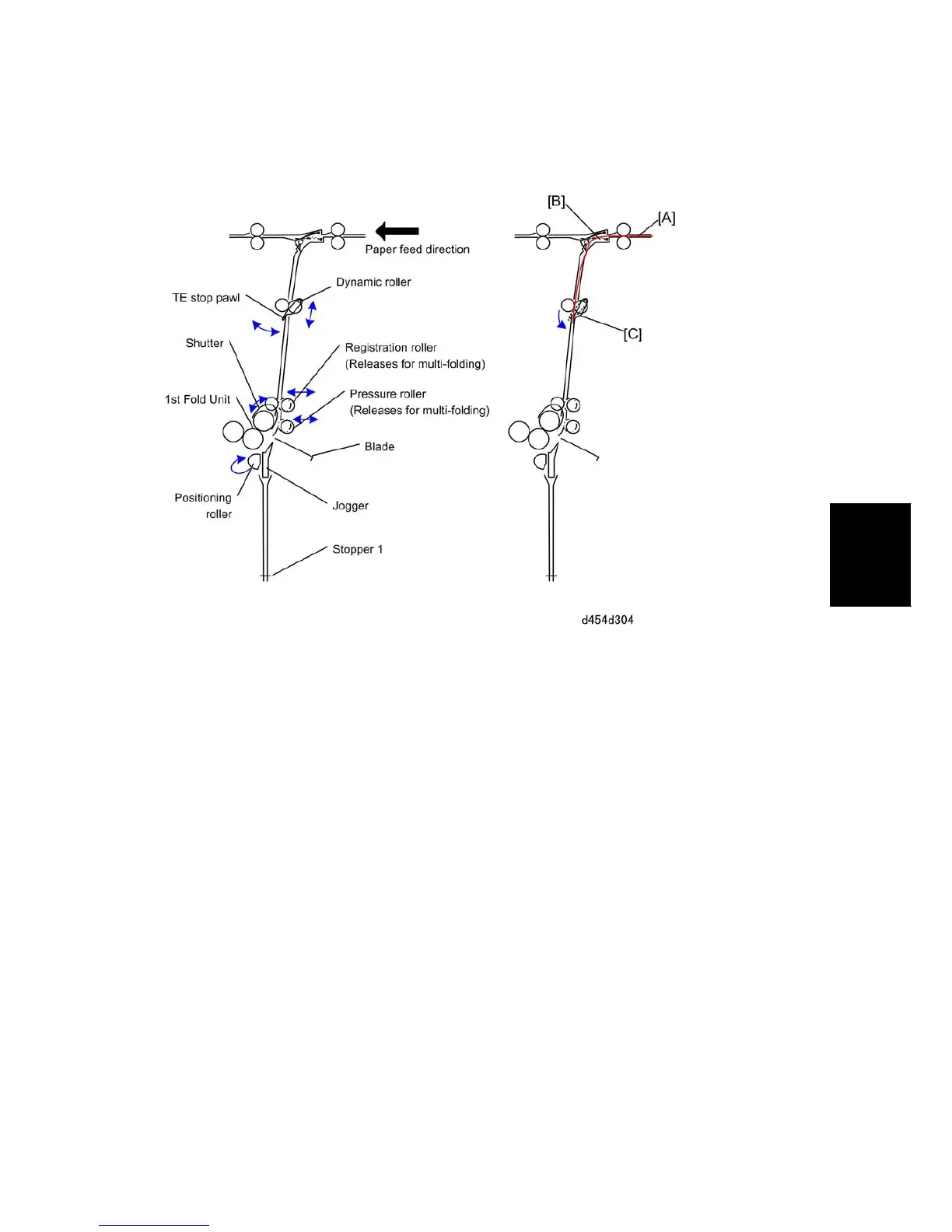

The left illustration shows the parts that operate during pre-stacking.
 The paper enters the machine [A].
 The lower entrance junction gate [B] opens and guides the paper to the TE stop pawl
[C].
 The paper pushes the TE stop pawl aside so it can pass.
