Ricoh Aficio MP 8001 Service Manual

Paper Path
SM 95 D454
Multi-Folding
Unit FD5000
D454

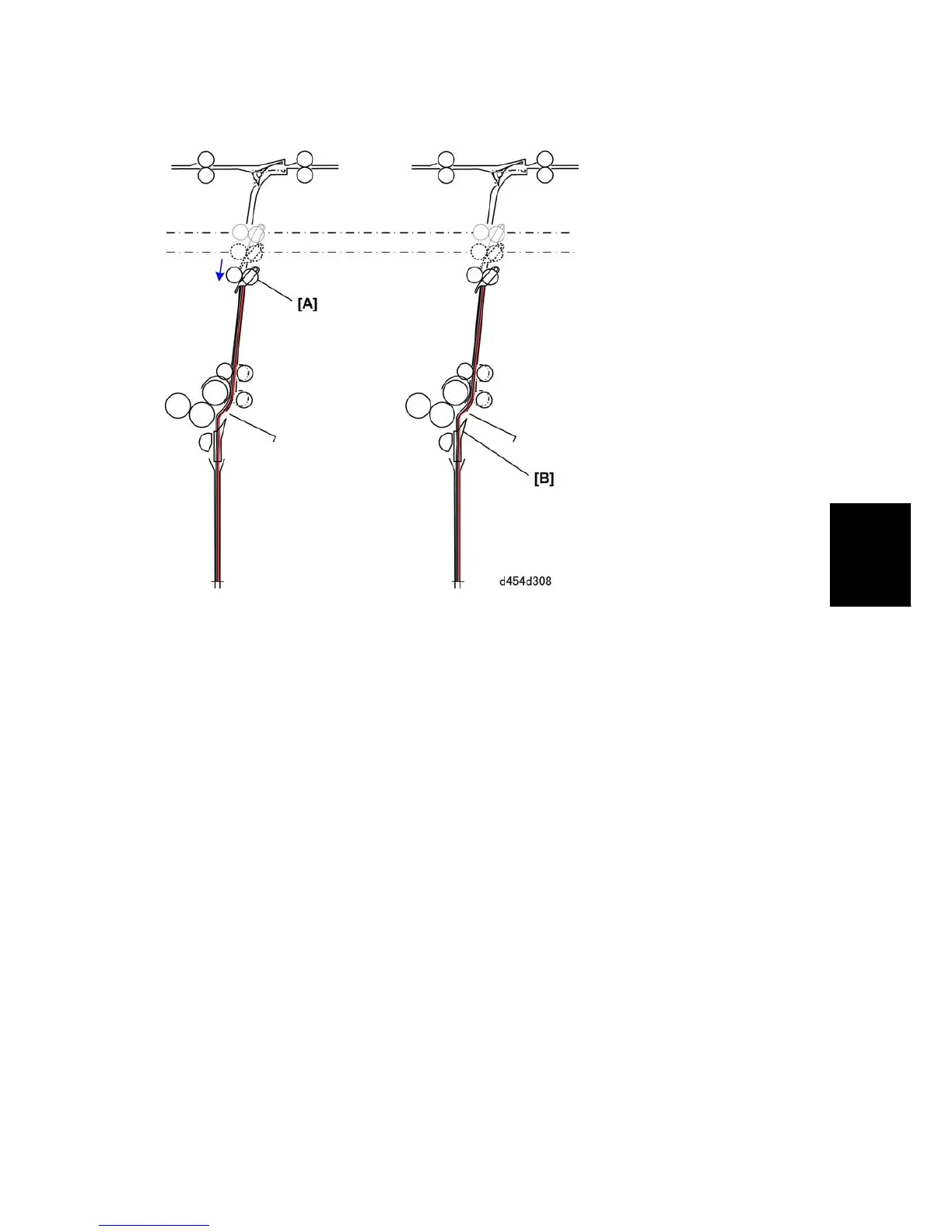

After the last sheet has been pre-stacked, the TE stop pawl [A] lowers and the sheets are
jogged vertically (top to bottom).
Next, with the TE stop pawl pressing down on the trailing edges of the stacked sheets, the
stack [B] is jogged horizontally (front to back).
