D454 102 SM

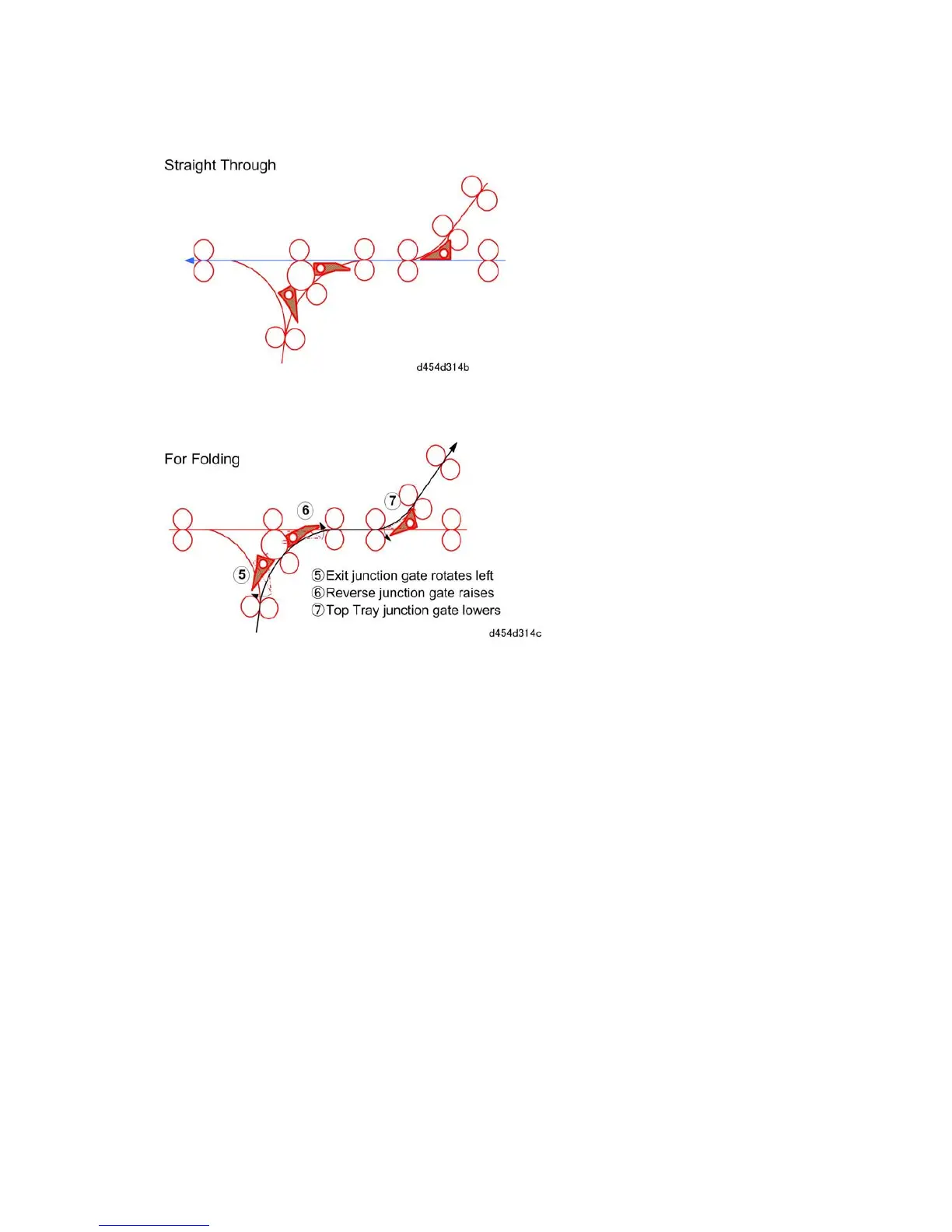

For straight-through paper feed the junction gates remain at their home positions. Paper
passes straight through the multi-folder to the next peripheral unit downstream.
All three junction gates operate to guide folded paper to the top tray:
Exit junction gate rotates left
Reverse junction gate raises
Top tray junction gate lowers
This sequence guides the folded paper to the top tray.
Note: Only Z-folded paper is allowed to exit the multi-folder and pass downstream to other
peripheral units. In this case, the junction gates remain at their default positions. The exit
junction gate sensor (5) guides the paper toward the multi-folder exit above.
