Ricoh Aficio MP 8001 Service Manual

Details
D454 106 SM

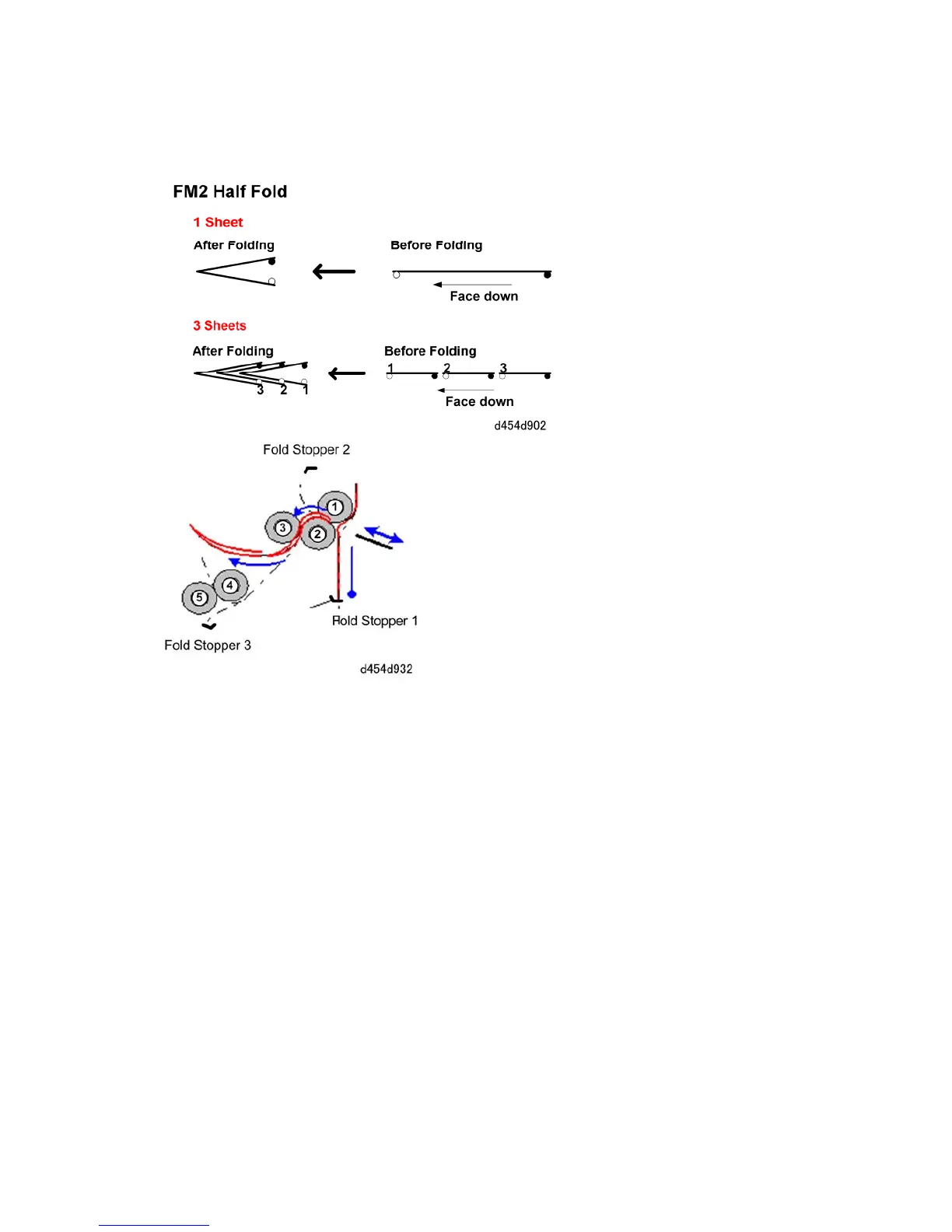

FM2 Half Fold
In Fold Method 2 (FM2):
 The leading edge of the paper is stopped by Fold Stopper 1.
 The paper flexes toward the nip of fold rollers { and | which performs the first fold and
feeds the folded edge of the paper into the nip of fold rollers | and }.
 Fold rollers | and } feed the paper into the exit path.
 Fold Stoppers 2, and 3 are not used.
