Ricoh Aficio MP 8001 Service Manual

Mail Box (B762)
D062/D063/D065/D066 2-86 SM

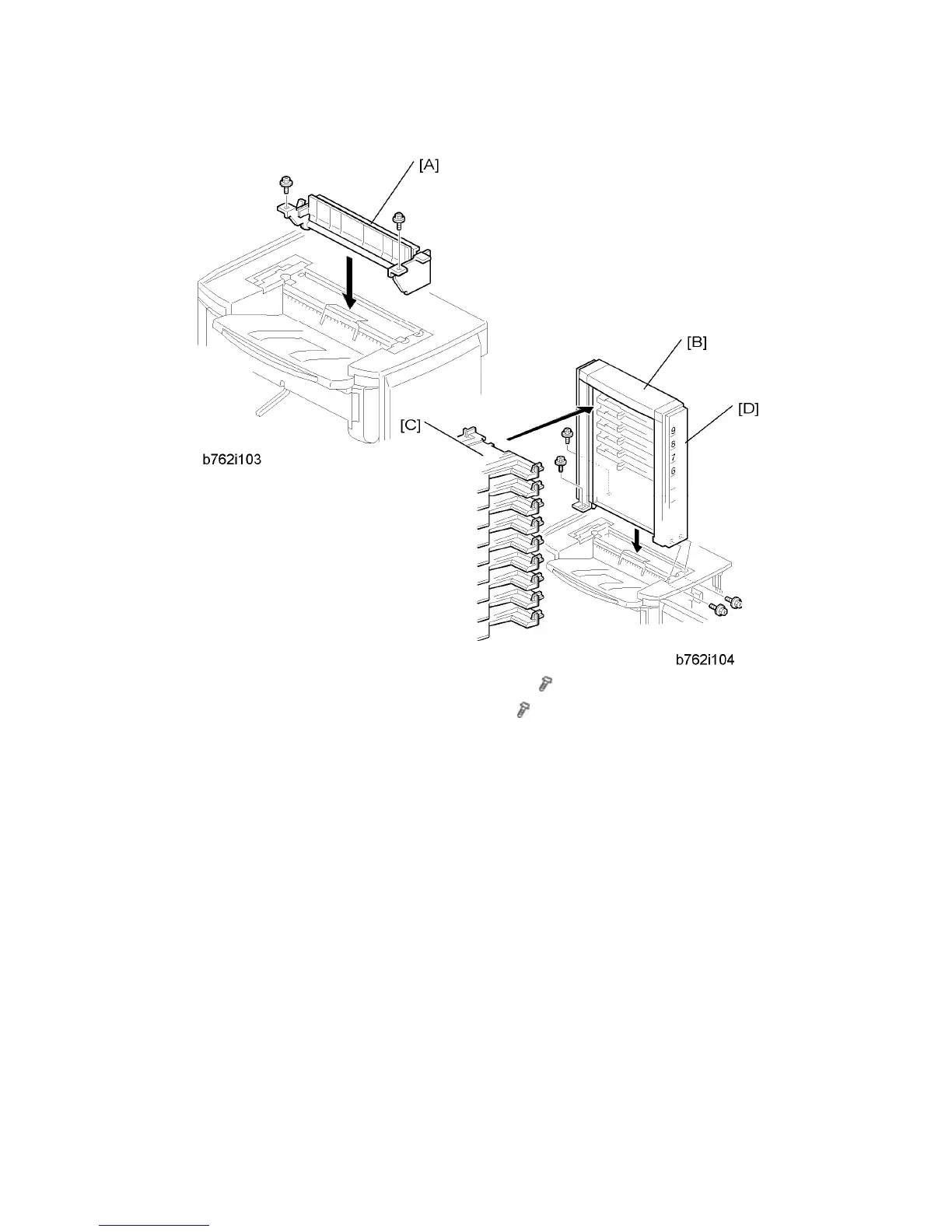

5. Attach the guide plate [A] to the top of the finisher ( x 2, M3x8).
6. Attach the mailbox [B] to the top of the finisher (
x 4, M3x8).
7. Attach the 9 trays [C] to the mailbox.
8. Give the decals [D] to the customer for notation and attaching at the correct location.
