MFP Options
SM 2-129 D062/D063/D065/D066
Installation
Installation
1. Switch the machine off.

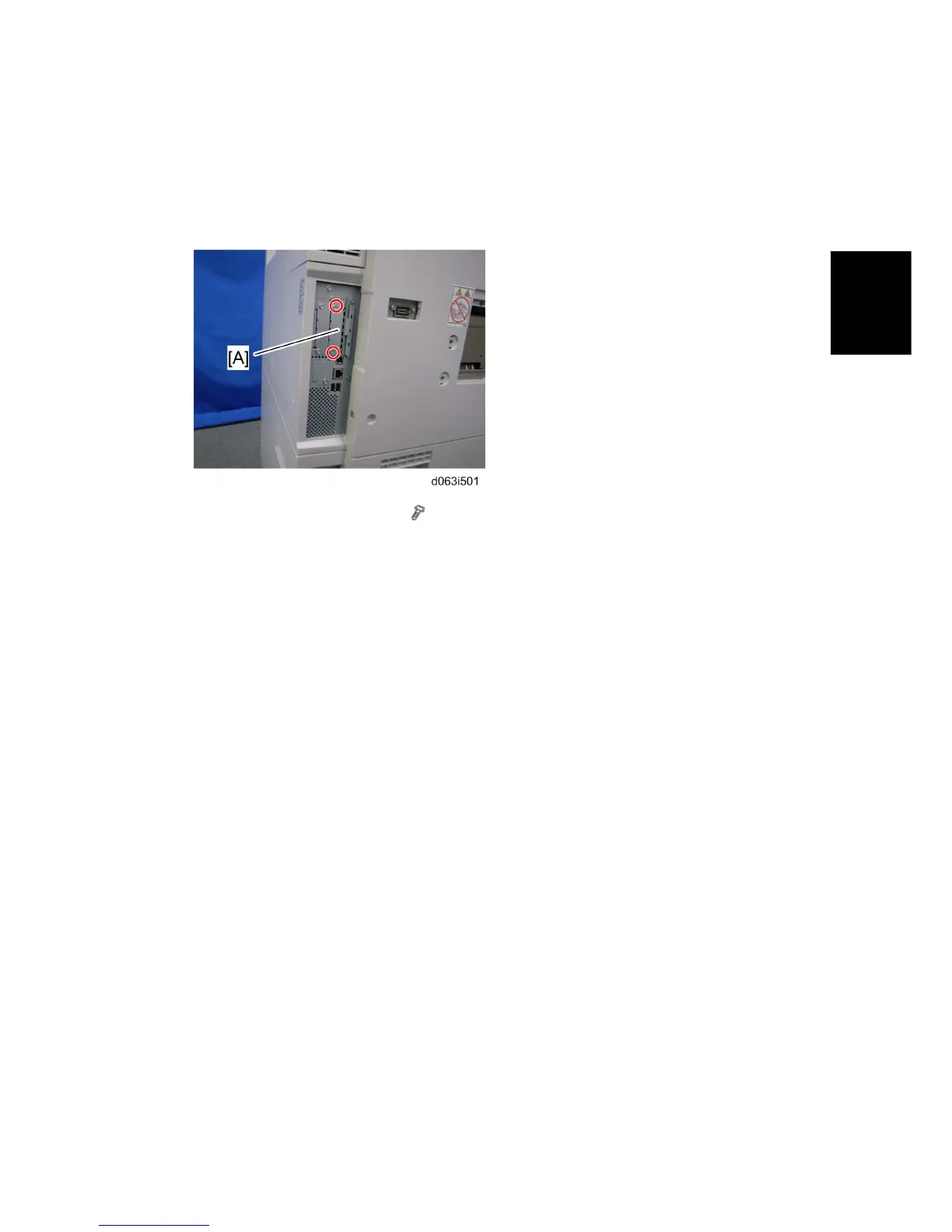

2. Remove the cover [A] of Slot A (
x 2).
3. Insert the 1284 Centronics board [B] into Slot A and fasten it with the screws.
Rev. 06/15/2011
