Ricoh Aficio MP 8001 Service Manual

Jam Detection
SM 6-5 D062/D063/D065/D066
Trouble-
shooting

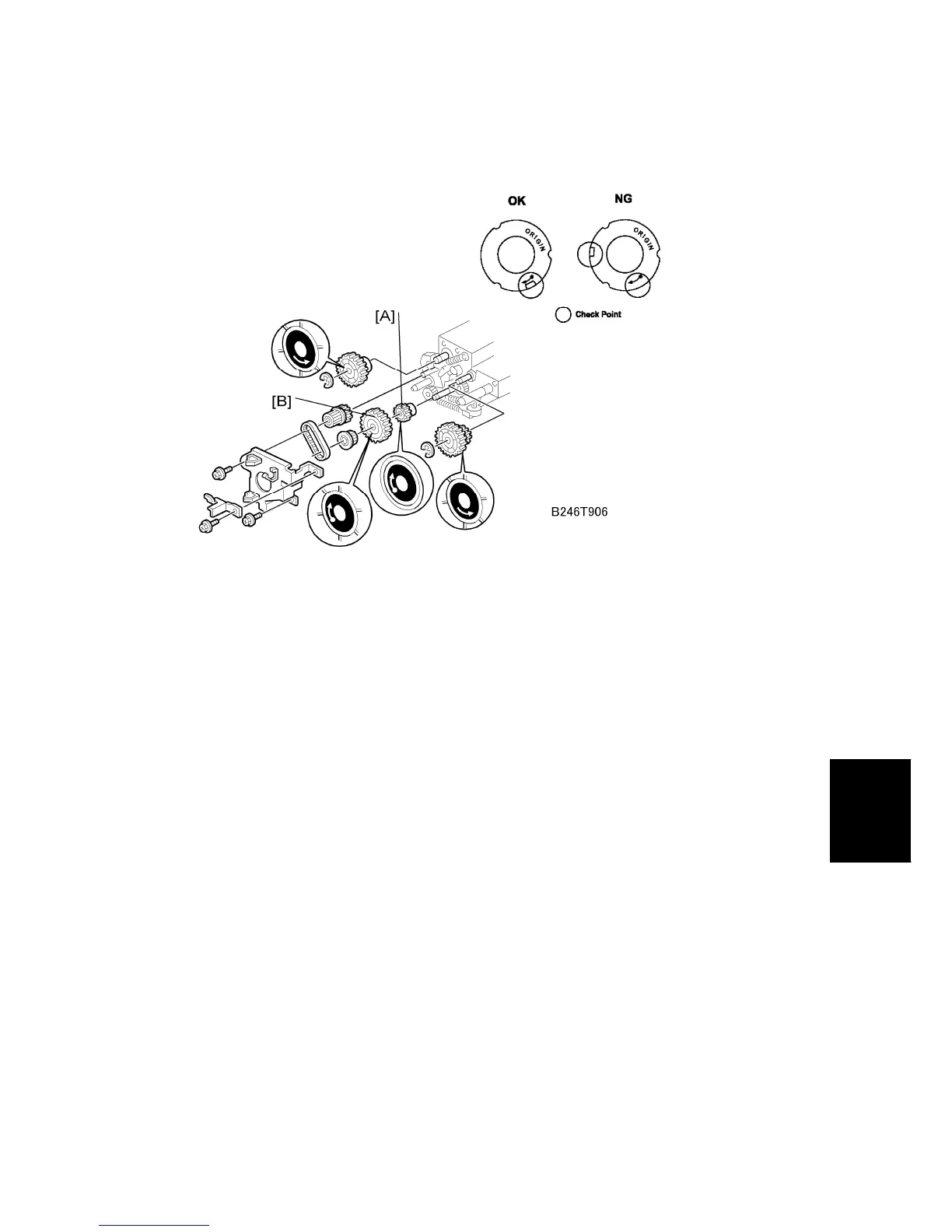

4. Replace a gear if its cutout and arrow are not in the same position.
5. When you replace Gear [A] or Gear [B], be sure to put the metal face on the outer side,
and the arrow must be in view.
6. If a replacement gear is not available, do this as a temporary procedure:
 Remove the paper feed unit.
 Remove the gear.
 Clean the gear shaft and inside the gear.
 Attach the gear.
 Install the paper feed unit.
