DETAILS
SM 35 B513/B531
Output
Jogger Unit/
Punch Unit
B513/B53131

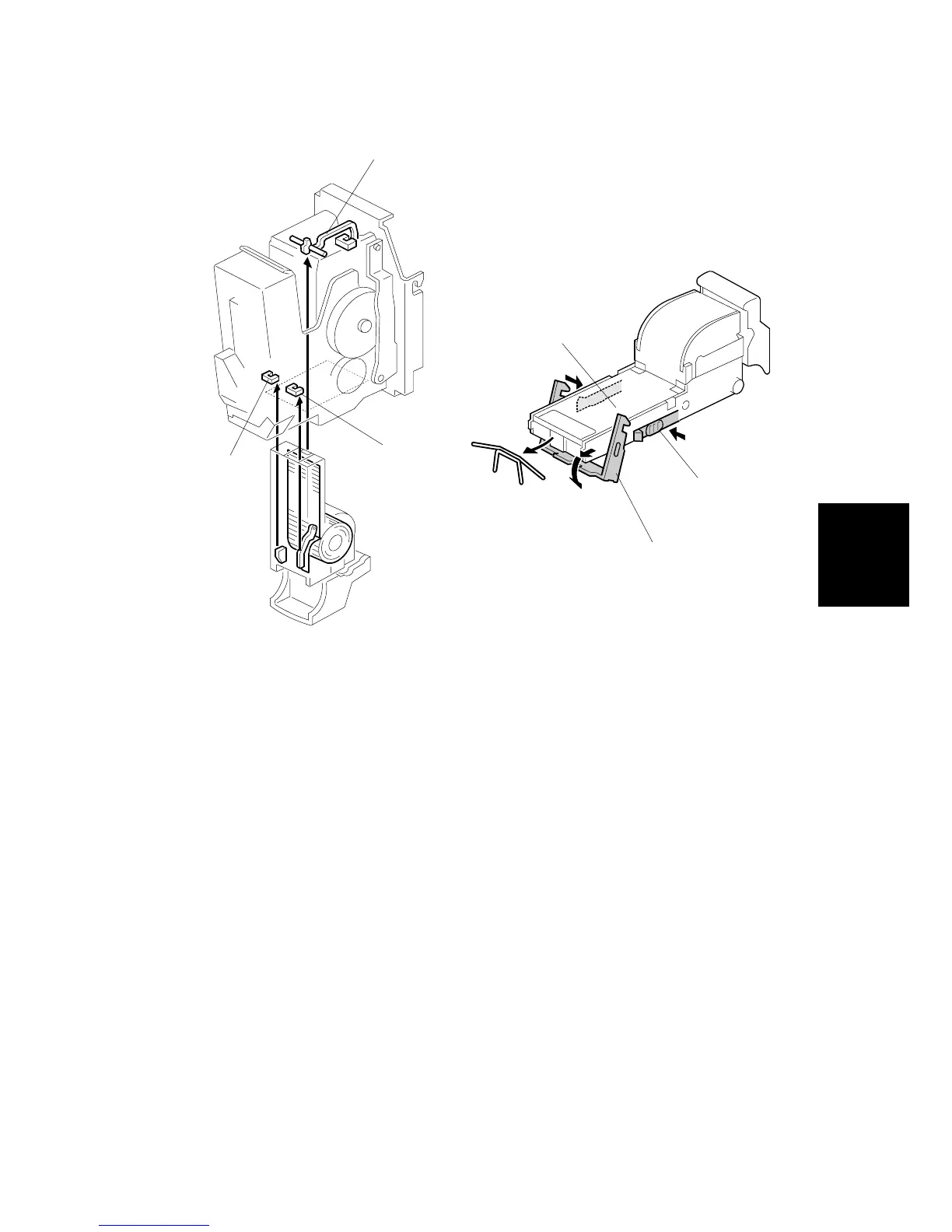

The stapler has a staple end sensor [A], cartridge set sensor [B] and staple
hammer HP sensor [C].
When a staple end or no cartridge condition is detected, a message is displayed
advising the operator to install a staple cartridge. If this condition is detected during
a copy job, the indication will appear, and the copy job will stop.
The staple cartridge has a clinch area [D] where jammed staples collect. The
operator can remove the jammed staples from the clinch area by pressing in the
releases [E] on both sides, then lowering the bracket lever [F].
B478D518.WMF
B478D517.WMF
[B]
[C]
[A]
[D]
[E]
[F]
