Ricoh Aficio MP 8001 Service Manual

Punch Unit (B531)
D062/D063/D065/D066 2-50 SM

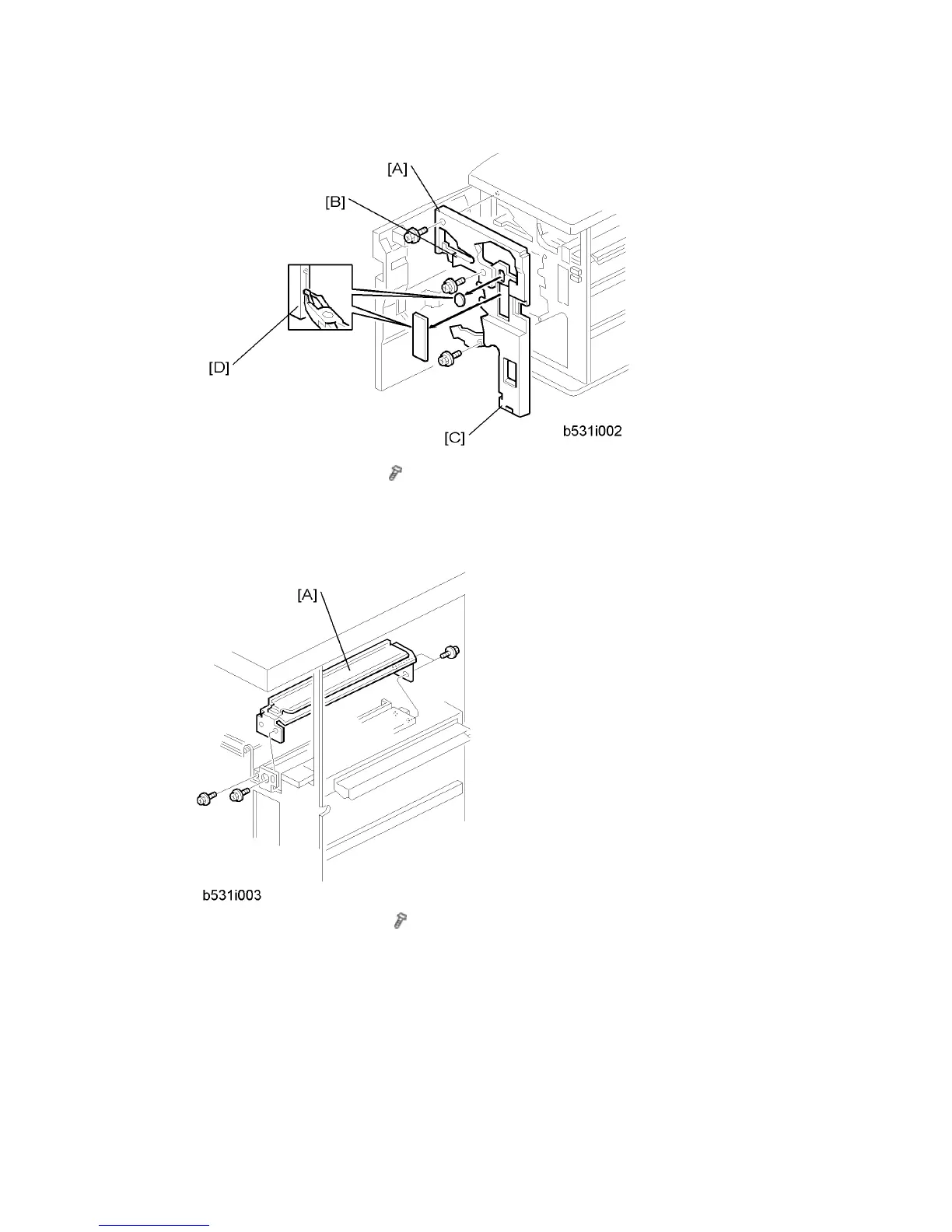

5. Remove the inner cover [A] (
x 3).
6. Behind the inner cover at [B] and [C], press the lock tab to the right to release the inner
cover from the frame.
7. Remove the plastic knockouts [D].
8. Remove the paper guide [A] ( x 4).
