Ricoh Aficio MP C2800

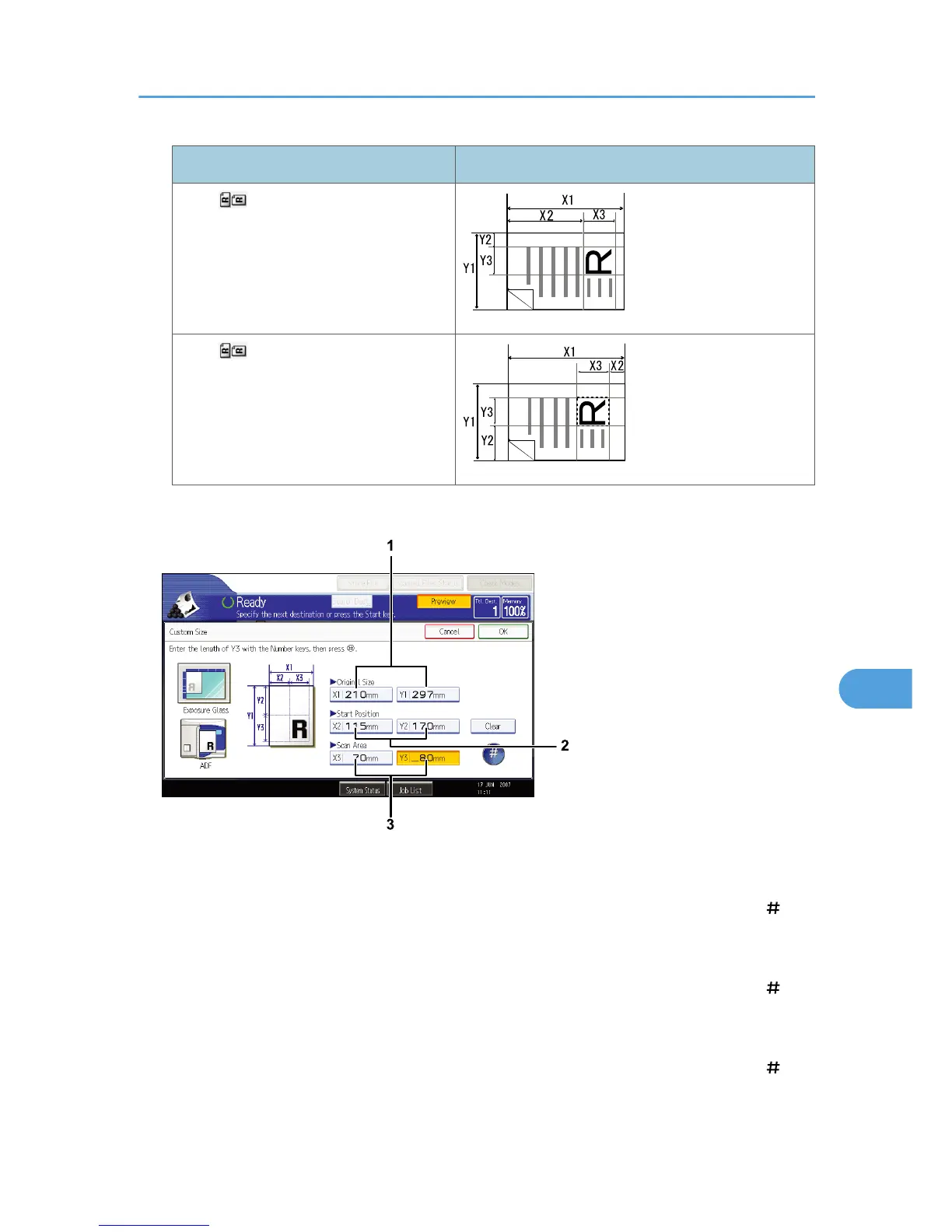

Orientation and placement of original Measuring method for scanning the "R" section
In the orientation in the ADF.
BAO015S
In the orientation on the exposure
glass.
BAO016S
Scan settings on the custom size setting screen
BAP043S
1. Original Size (X1 and Y1)
Specify the original's entire size.
Enter the actual values in [X1] and [Y1] while referring to "How to measure sizes", and then press the [ ] key.
2. Start Position (X2 and Y2)
Specify the scanning start position.
Enter the actual values in [X2] and [Y2] while referring to "How to measure sizes", and then press the [ ] key.
3. Scan Area (X3 and Y3)
Specify sizes of the area you want to scan.
Enter the actual values in [X3] and [Y3] while referring to "How to measure sizes", and then press the [ ] key.
Scan Settings
153
8
