Placing an Original and Loading Paper
89
1

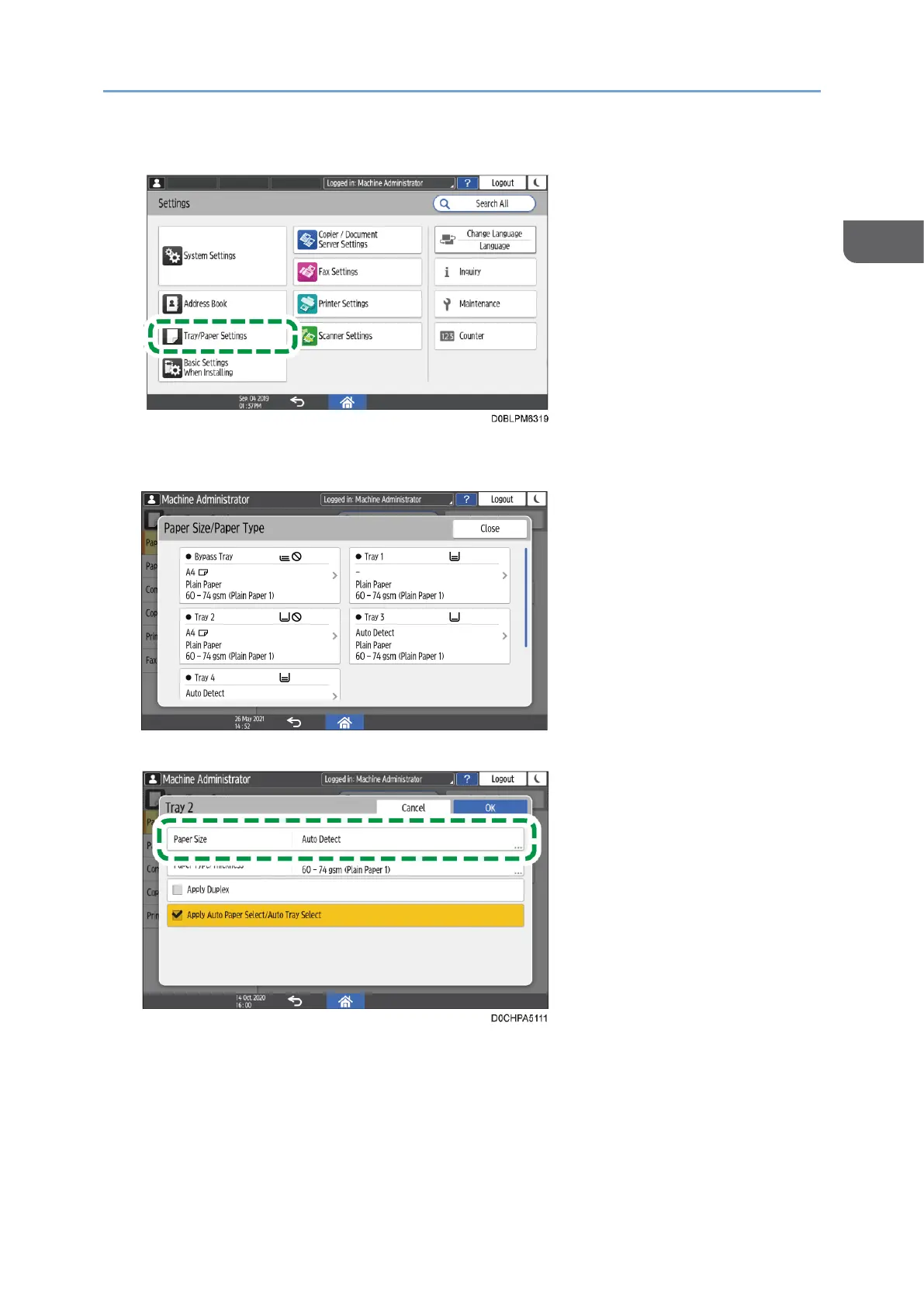

2.
Press [Tray/Paper Setti
ngs].
3.
Press [Paper Size/Paper Type].
4.
Press one tray to set.
5.
Press [Paper Size].
To specify for the bypas
s
tray, press [Paper
Size: Printer].
The size of the paper in
Tray 1
, Tray 3 (LCT), a
nd the large capacity tra
y is
fixed and
cannot be changed.
