Ricoh JP5800 - Paper Width Sensor Replacement

1 March, 2000 PAPER TRAY
6-5
Replacement
Adjustment
6.1.5 PAPER WIDTH SENSOR REPLACEMENT

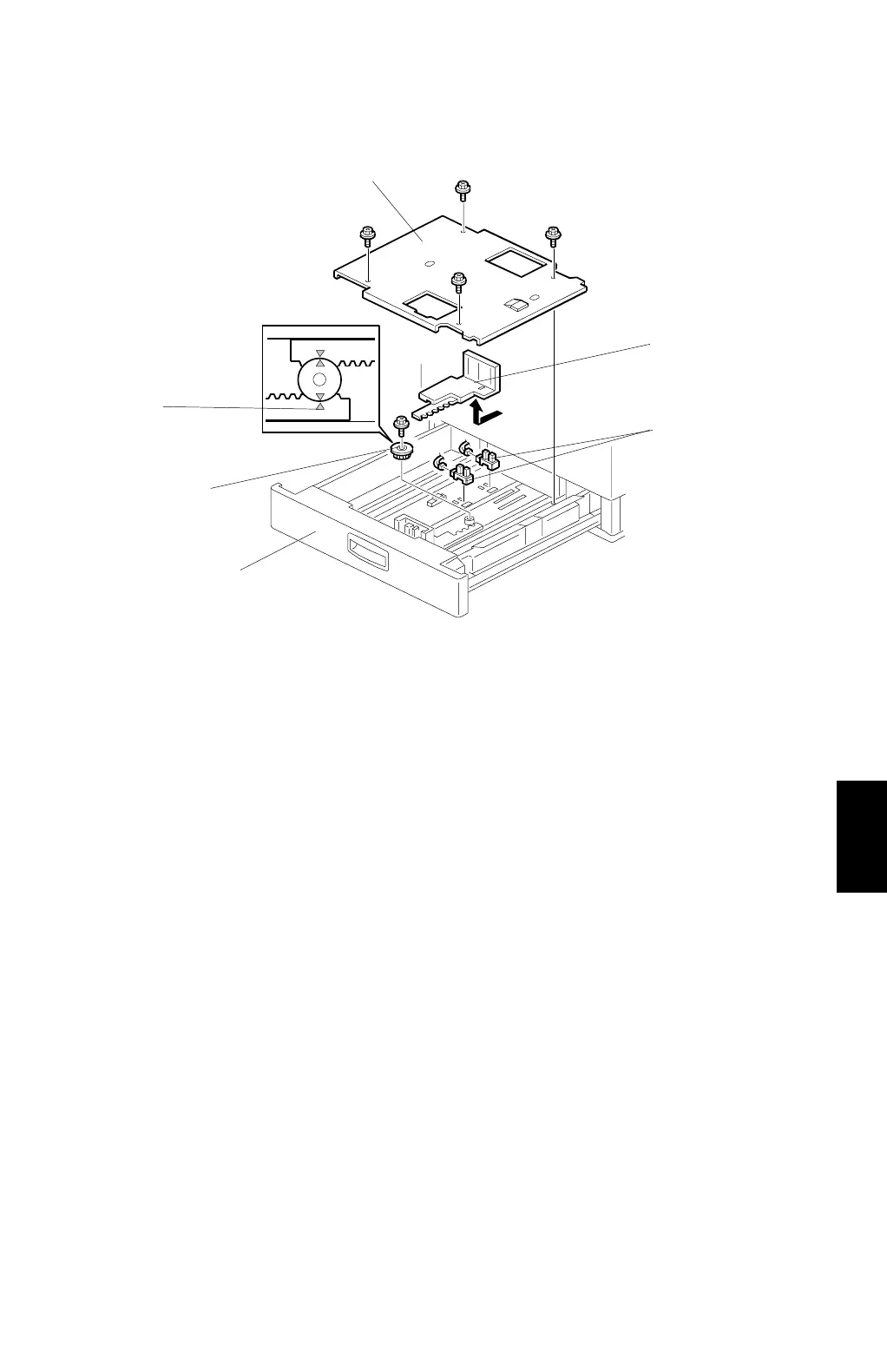

1. Remove the tray [A].
2. Remove the bottom plate [B] (4 screws).
3. Remove the pinion [C] and rack [D].
4. Replace the paper width sensors [E].
NOTE:
To re-install the pinion, position each point [F] as shown.
C232R007.WMF
[A]
[B]
[C]
[D]
[E]
[F]
