1 March, 2000 DRIVE LAYOUT
1-29
Overall
Information

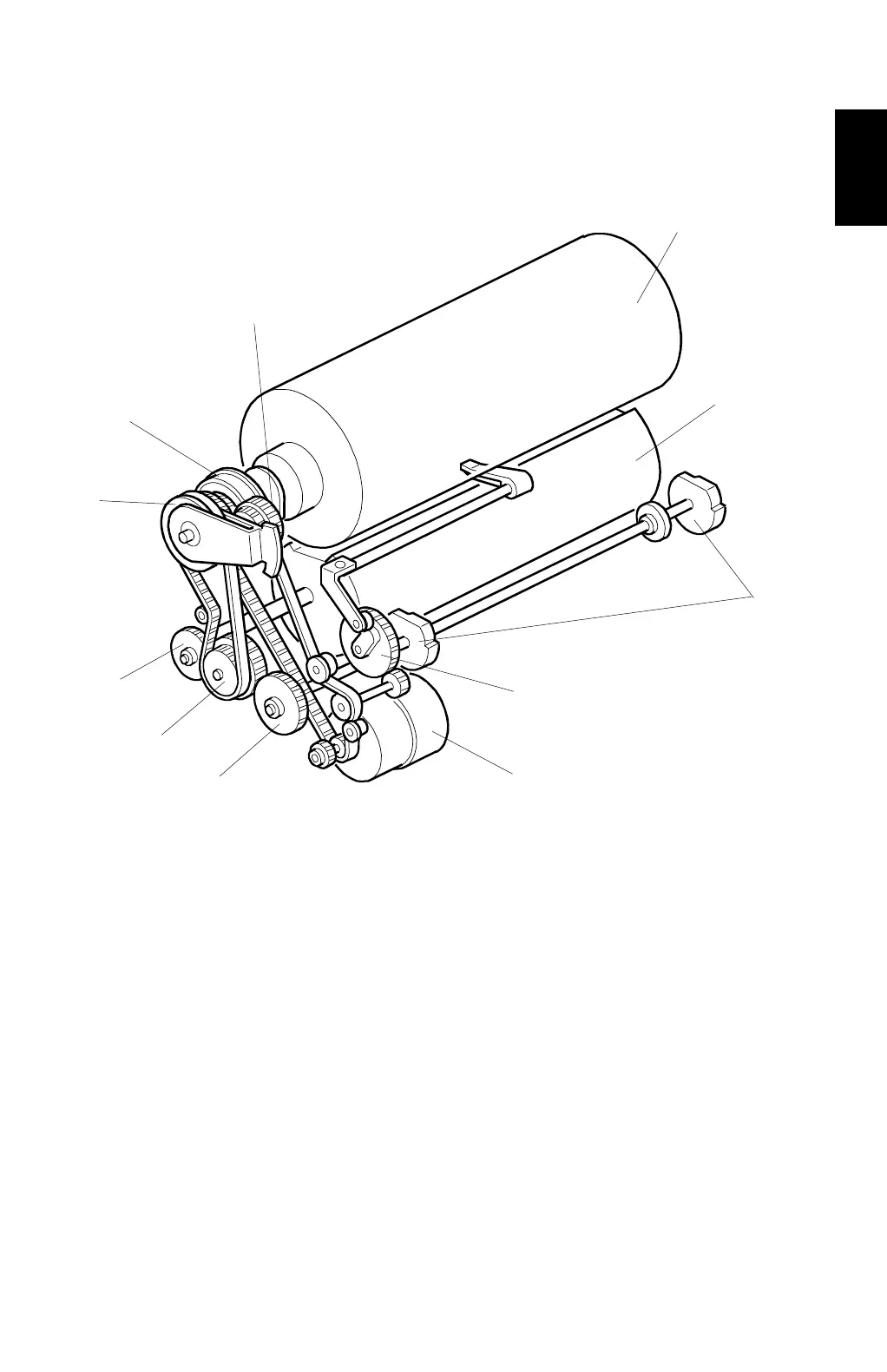

1.9.2 MAIN DRIVE
18. Drum
19. Pressure Cylinder
20. Printing Pressure Cam
21. Exit Pawl Drive Cam Gear
22. Main Motor
23. Printing Pressure Cam Drive Gear
24. Idler Gear/Pulley
25. Pressure Cylinder Drive Gear
(including the Scissors Gear)
26. Primary Gear/Pulley
27. Drum Drive Gear/Pulley
28. Image Shift Gear
C232V516.WMF
18
19
20
22
23
24
25
26
27
28
21
