2.6 ERROR DETECTION
2.6.1 PAPER FEED ERROR DETECTION IN THE PAPER BANK
Error during Paper Feed from the Tandem Tray
Tray Registration Motor
Tray Registration Sensor
Error when Moving the Paper Stack in the Tandem Tray
•
The tandem tray sensor stays on after the paper has moved from the left tandem
tray to the right tandem tray.
•
The left tray paper length sensor stays on after the paper has moved from the left
tandem tray to the right tandem tray.

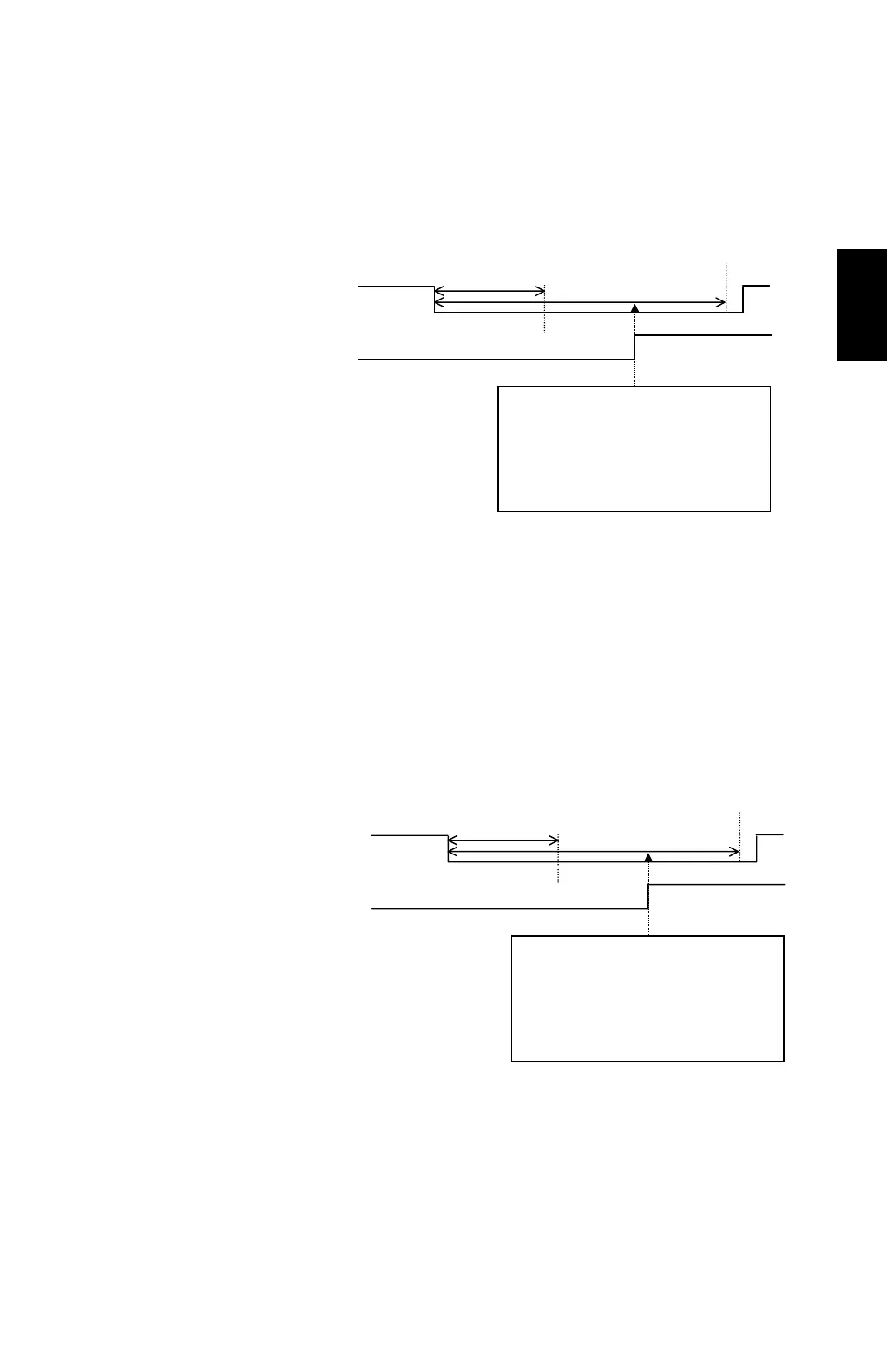

Error during Paper Feed from Tray 2
Tray Feed Motor
1st Relay Sensor
Paper Feed Jam
The sensor is not on within 95
milliseconds.
Paper Feed Jam
The sensor is not on within
106 milliseconds.
