Ricoh JP5800 - Tray Cover Removal

PAPER TRAY 1 March, 2000
6-6
6.1.6 TRAY COVER REMOVAL
Left tandem tray cover
1. Draw out the left tandem tray [A].

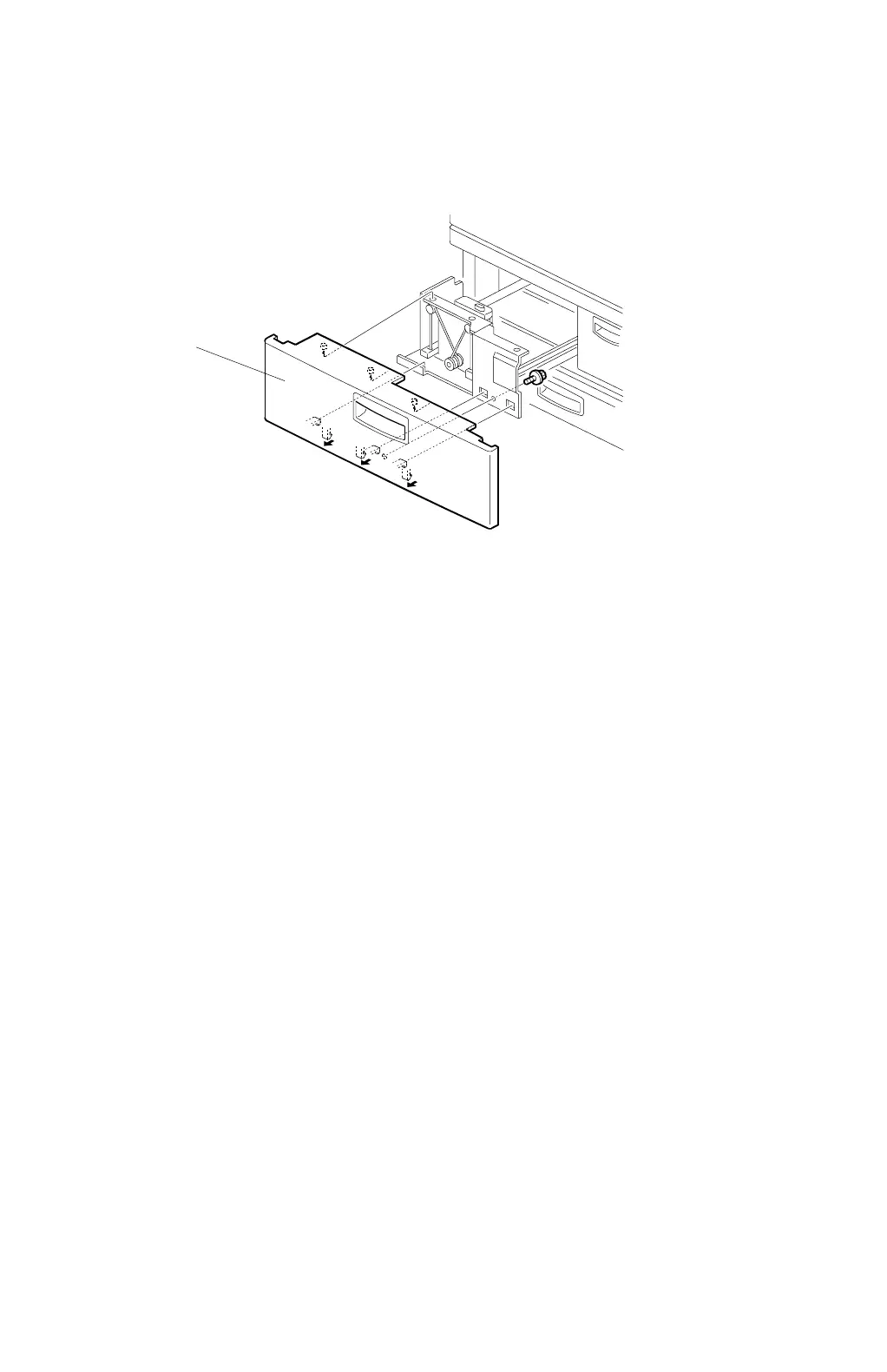

2. Remove the left tandem tray cover, as shown (1 screw).
NOTE:
When re-installing the left tandem tray cover, set the hooks in the holes in
the frame.
C232R008.WMF
[A]
