Ricoh JP5800 - 2 Timing Belt Tension Adjustment for the Paper Table Feed Motor

1 March, 2000 PAPER FEED SECTION (MAIN BODY)
6-19
Replacement
Adjustment

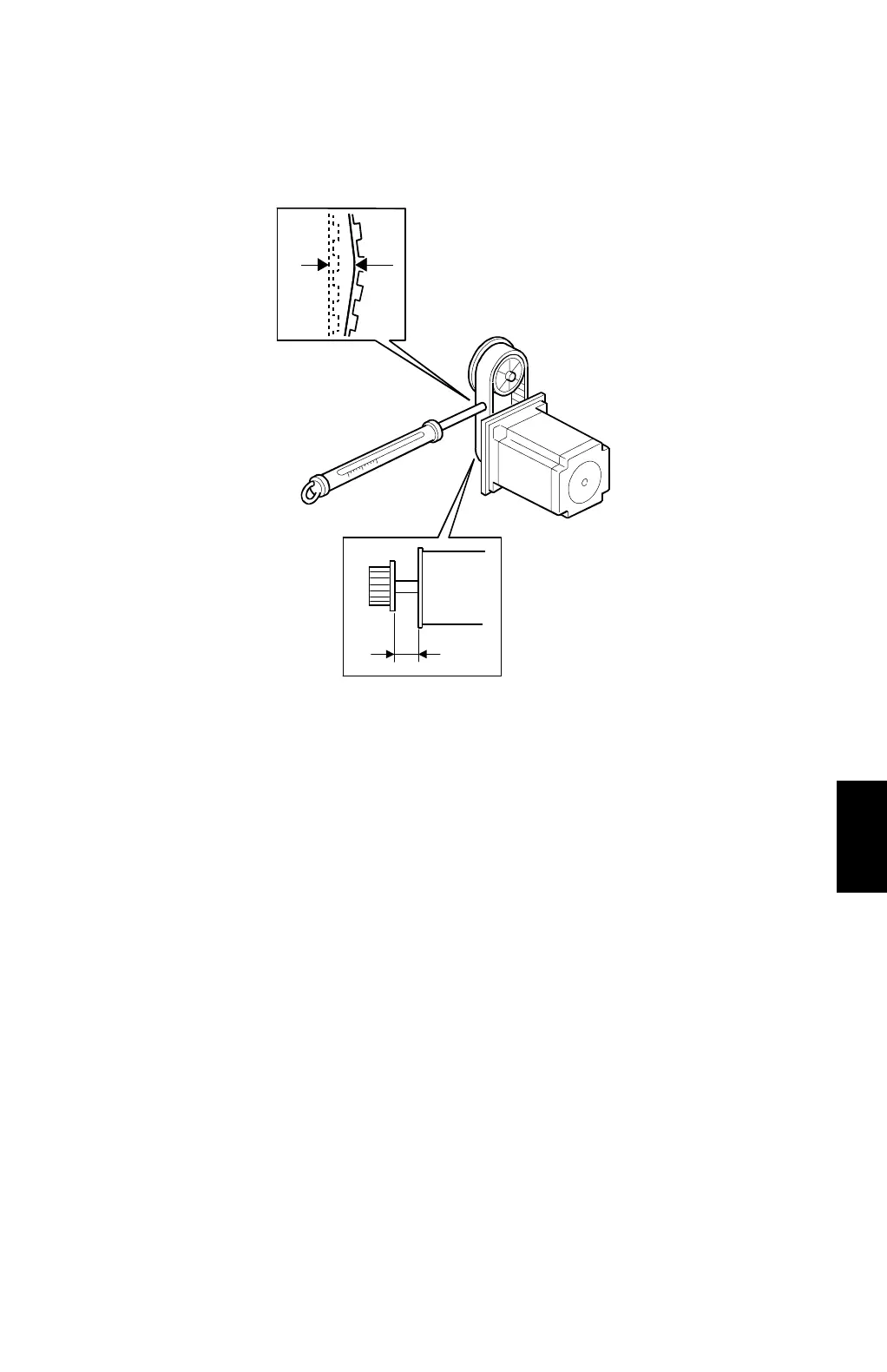

6.3.2 TIMING BELT TENSION ADJUSTMENT FOR THE PAPER
TABLE FEED MOTOR
1. Make sure that the distance between the motor and the flange is 5.5 ± 0.3 mm.
2. Apply a 500g load to the center of the belt using a tension gauge. Make sure
that the belt deflects between 2 to 4 mm. If the tension is incorrect, move the
motor up or down.
C232R014.WMF
2 ~ 4 mm
5.5 ± 0.3 mm
