Ricoh JP5800 - Paper Delivery Table; Side and End Plate Drive

PAPER DELIVERY TABLE 1 March, 2000
2-12
2.2 PAPER DELIVERY TABLE
2.2.1 SIDE AND END PLATE DRIVE

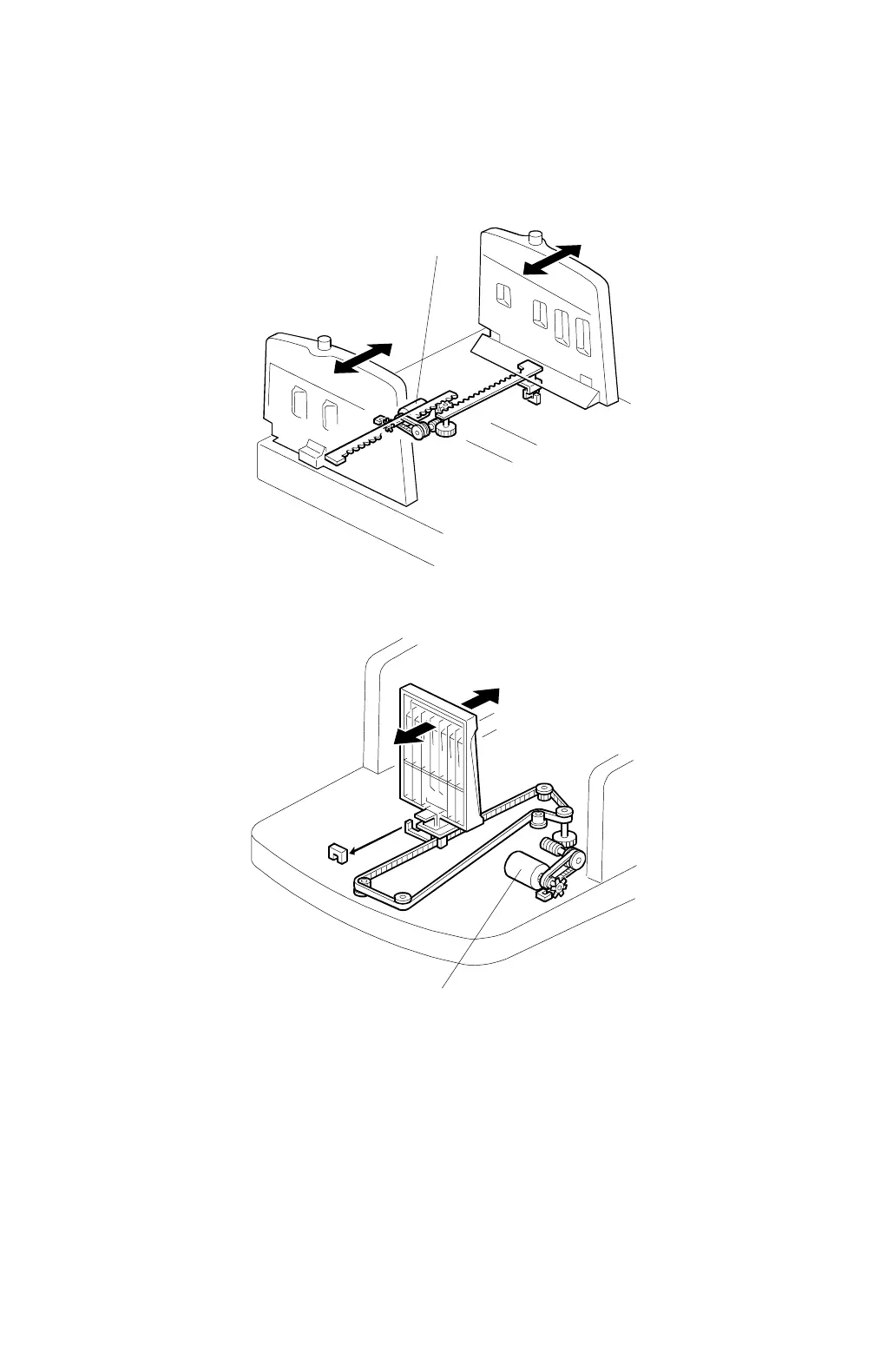

The side plate drive motor [A] moves the left and right side plates using a rack and
pinion mechanism. The end plate drive motor [B] moves the end plate via a timing
belt and pulleys.
When the print start key is pressed, the fences move to fit the print paper size in
accordance with the paper size detected at the paper table or the paper trays.
C232D015.WMF
C232D016.WMF
[B]
[A]
