1 March, 2000 PAPER BANK
2-9
Detailed
Descriptions
2.1.6 SIDE FENCE POSITIONING AND PAPER SIZE DETECTION
Tray 1

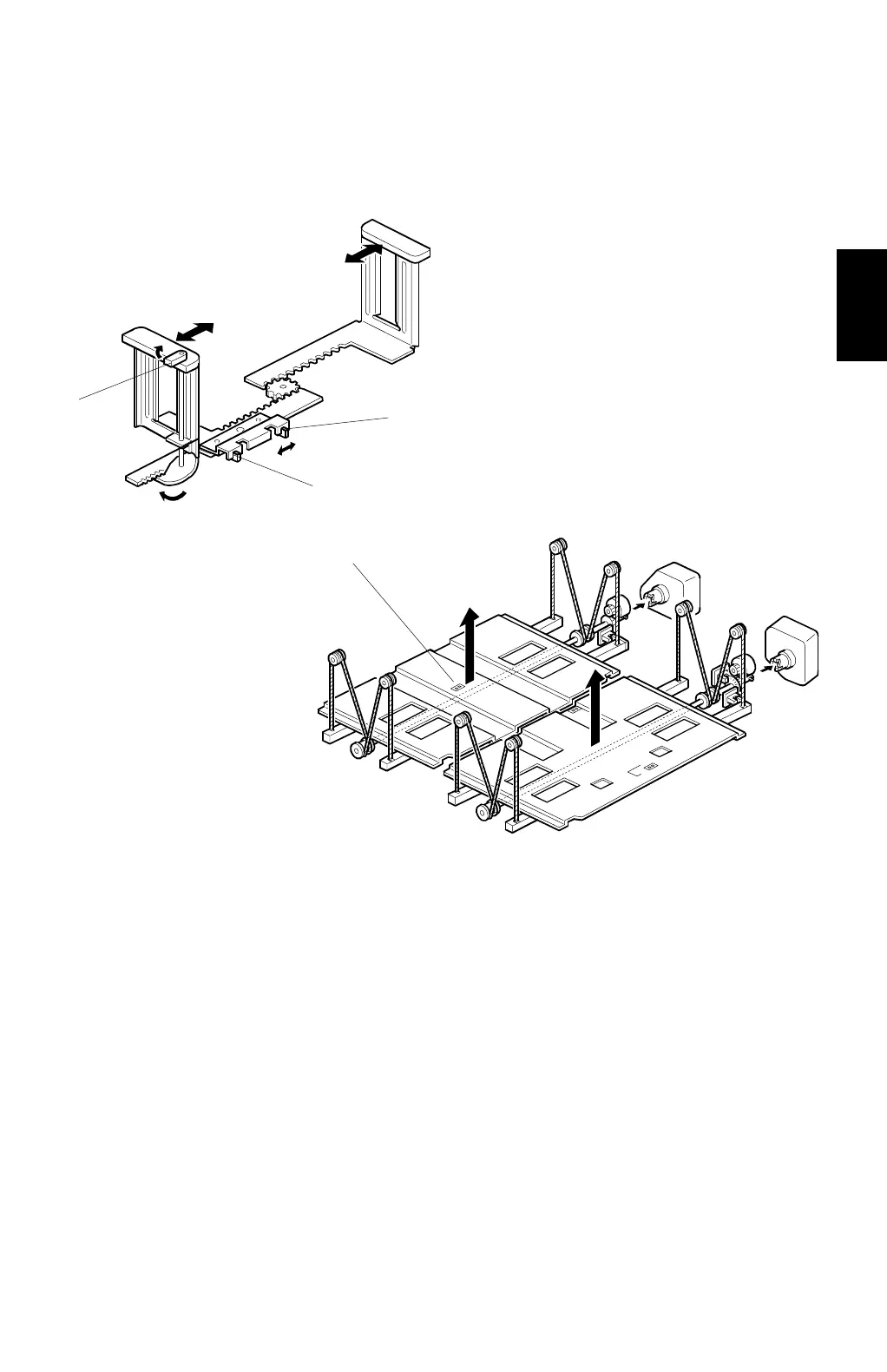

The front and rear tray paper width sensors [A] and [B] monitor the paper width.
These sensors detect the paper size in tray 1, in combination with the reading from
the left tray paper length sensor [C].
By turning side fence lock lever [D] clockwise, the side fence is locked.
C232D004.WMF
C232D011.WMF
[C]
[A]
[B]
[D]
