Ricoh JP5800 - Page 146

1 March, 2000 PAPER TRAY
6-9
Replacement
Adjustment

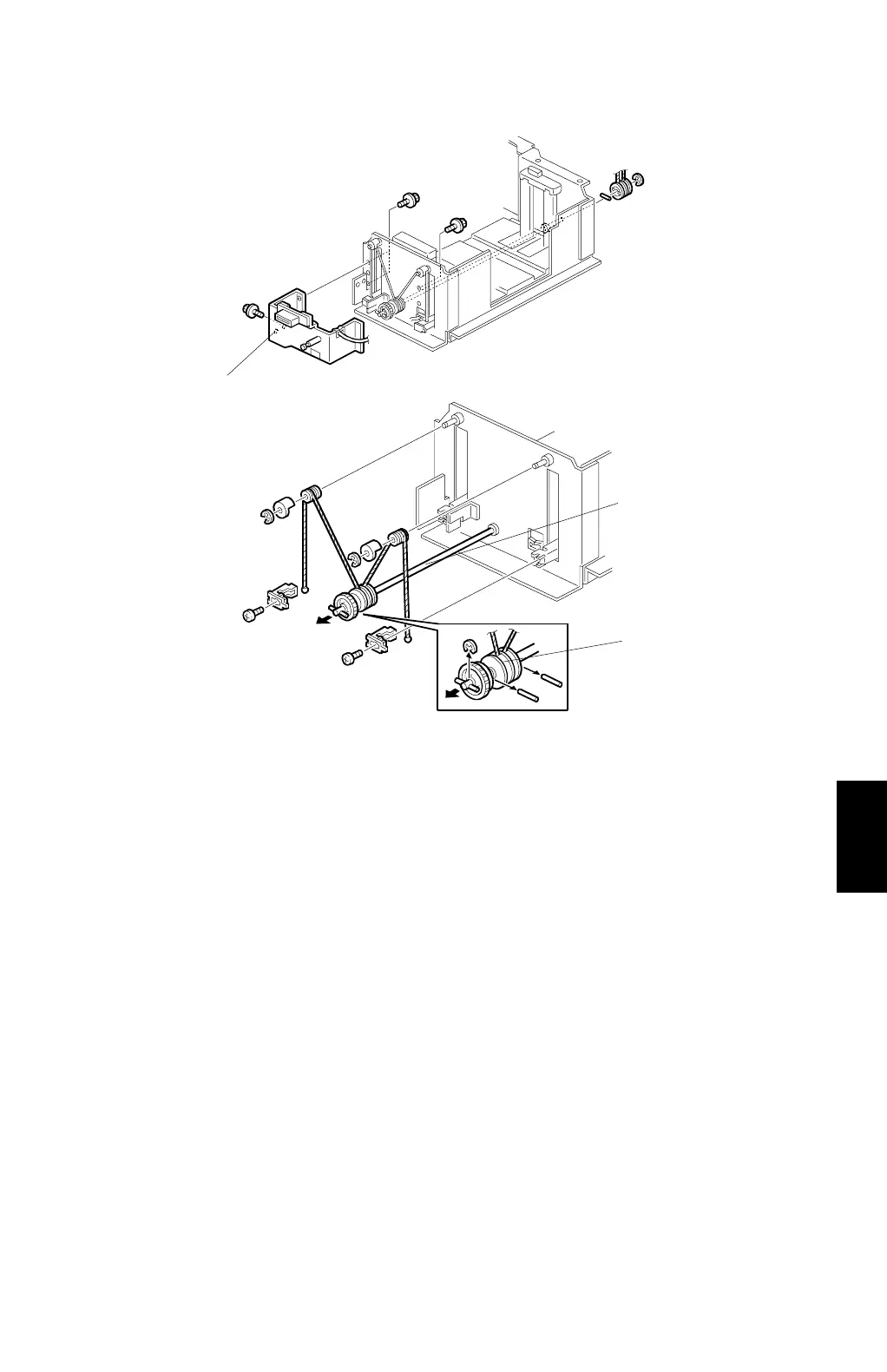

6. Remove the bracket [D] (4 screws).
7. Remove the wire stoppers.
8. Remove the wire covers.
9. Remove the shaft [E], then replace the rear bottom plate lift wire [F] (1 E-ring, 2
pins).
C232R012.WMF
C232R013.WMF
[D]
[E]
[F]
