1 March, 2000 PAPER BANK
2-3
Detailed
Descriptions

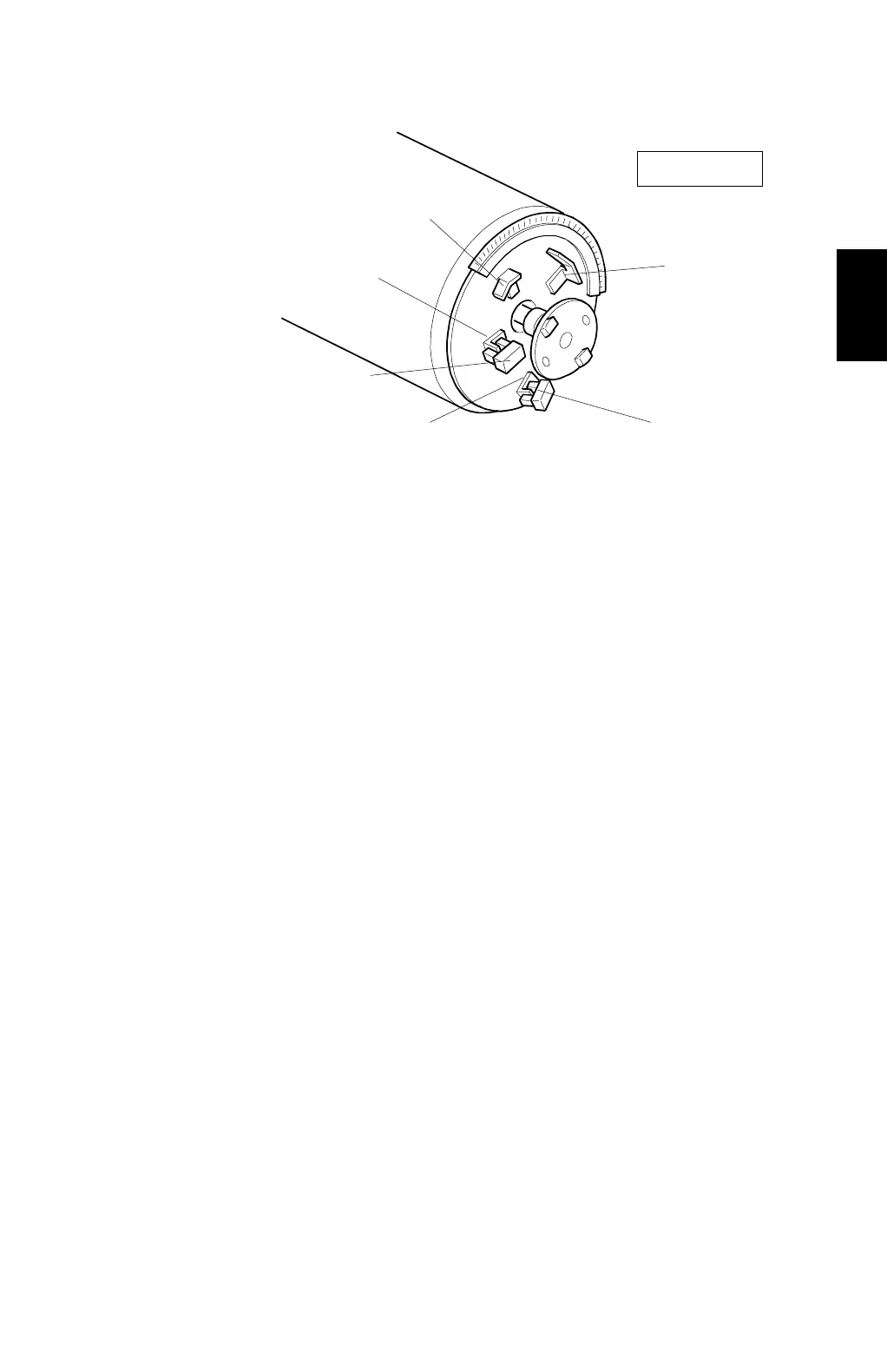

The tray feed start sensor [A] controls paper feed timing from the paper trays. The
tray paper feed motor turns on a pre-determined duration after actuator [B]
interrupts the tray feed start sensor. Similarly, the tray registration motor turns on
using actuator [C].
NOTE:
The paper feed timing from the paper feed table (towards the main body) is
maintained by the paper table feed start sensor [F] in combination with
actuators [D] and [E].
C232D002.WMF
Rear View
[A]
[B]
[C]
[D]
[E]
[F]
