Tray Lock Mechanism

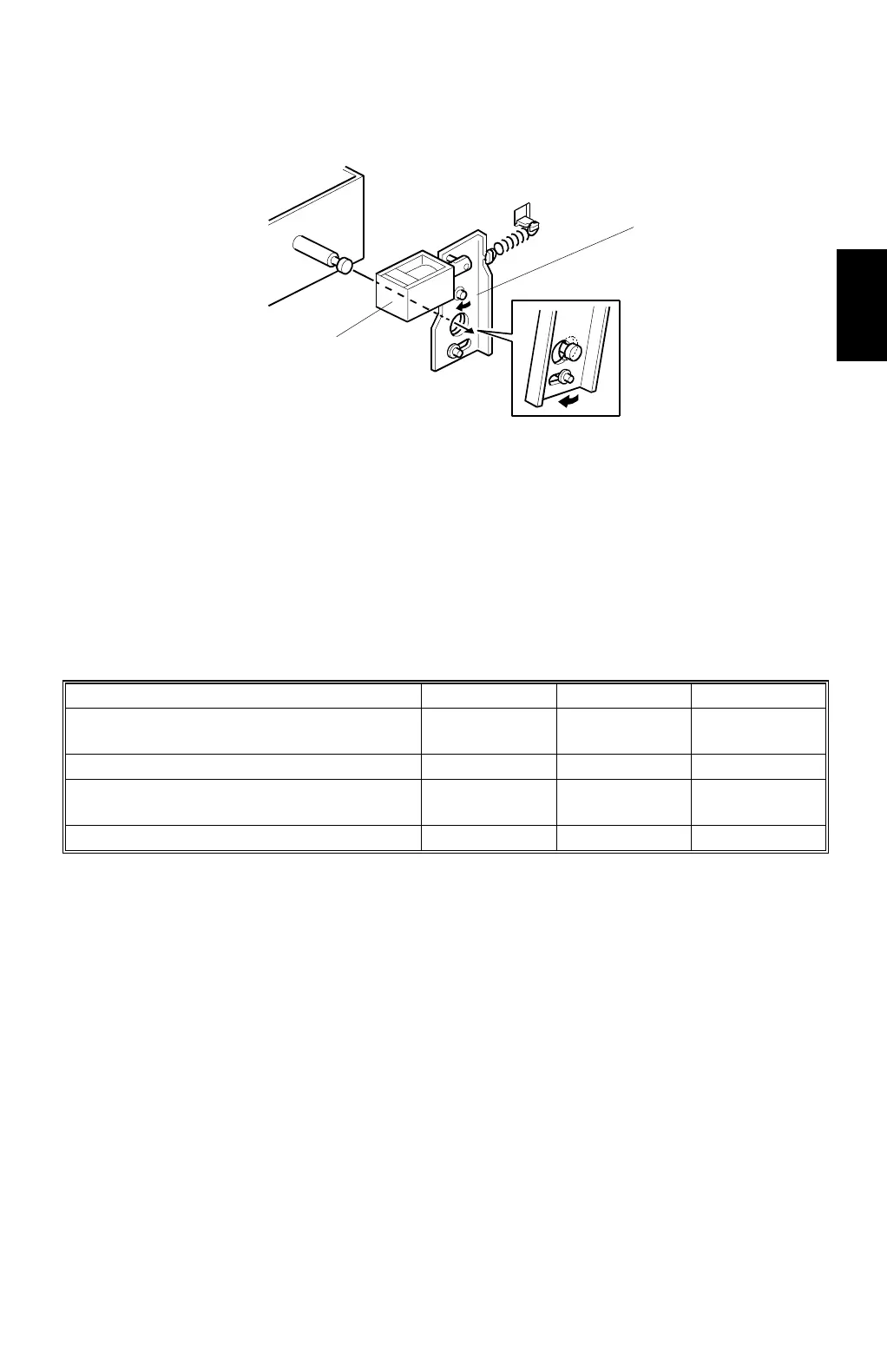

During printing, the tray lock solenoid [A] turns on and lock plate [B] locks the tray.
This mechanism is the same in the right and left halves of the tandem tray.
NOTE:
The same type of mechanism is used also for tray 2.
The tray lock timing for each mode is shown in the table.
Tray 1 Left Tray 1 Right Tray 2
Paper feed from tray 1:
Non-Tandem Mode
Locked Locked Unlocked
Paper feed from tray 1: Tandem Mode Unlocked Locked Unlocked
Transferring paper from left to right in
the tandem tray
Locked Locked Unlocked
Paper feed from tray 2 Unlocked Unlocked Locked
C232D013.WMF
[A]
[B]
