Ricoh Pro C5200s Operating Instructions

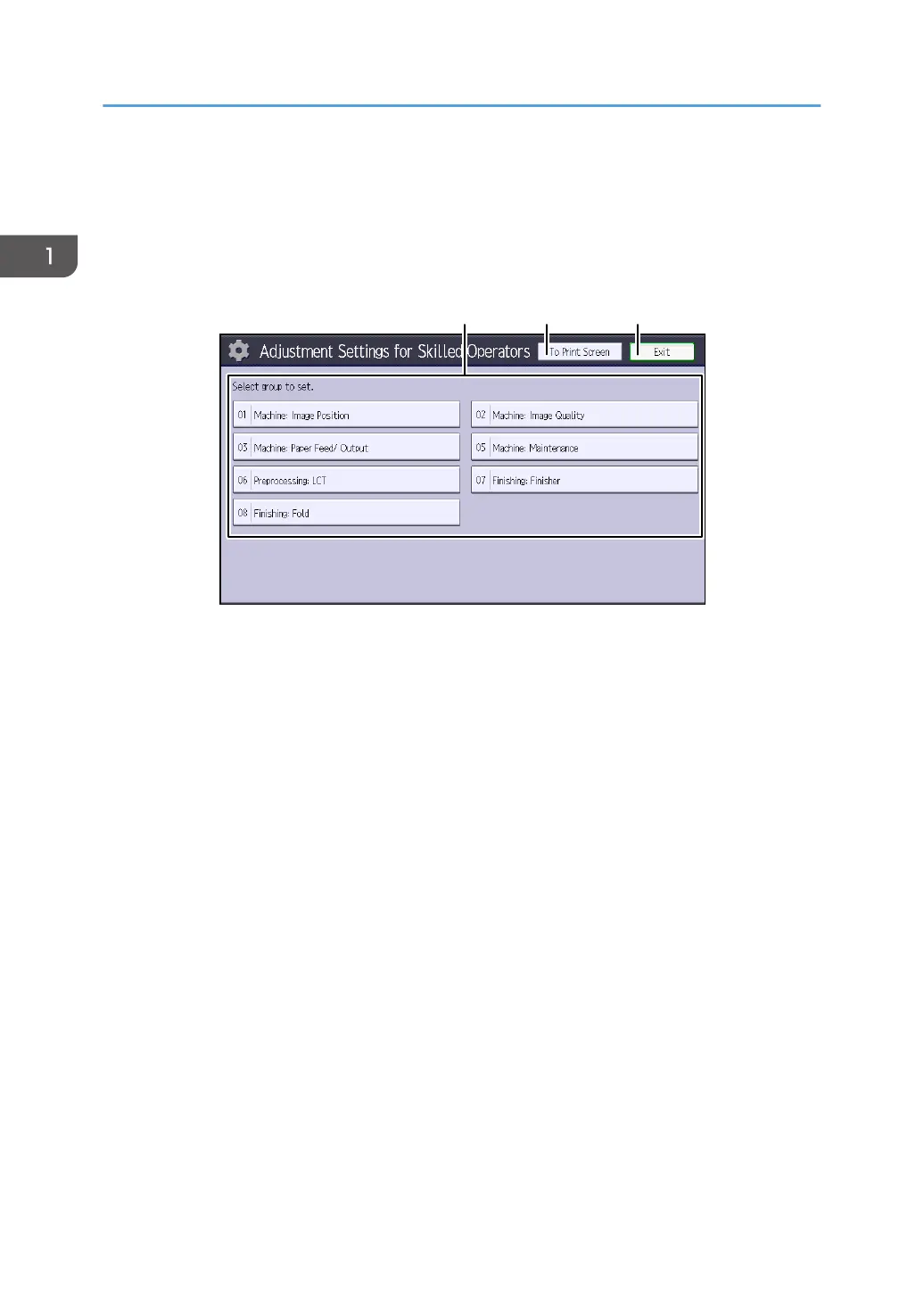

Layout of Adjustment Settings for Skilled
Operators
This section explains how to use Adjustment Settings for Skilled Operators.
321
CWH201
1. Adjustment items are displayed in this area. Select the setting you want to specify or change.
2. Press this button to display the print screen. You can use this screen to view the changes you have
made.
3. Press this button to close Adjustment Settings for Skilled Operators.
1. Adjustment Settings for Skilled Operators
14

Ricoh Pro C5200s Specifications

General

Print Technology	Laser
Max Paper Size	330.2 x 487.7 mm
Monthly Duty Cycle	300, 000 pages
Print Speed	65 ppm
Resolution	1200 x 4800 dpi
Paper Input Capacity	8, 250 sheets
Paper Weight	52 to 360 gsm
Duplex Printing	Standard
Network Connectivity	Ethernet 10Base-T/100Base-TX/1000Base-T
Supported Media Sizes	A3, A4, A5, B4, B5
Supported Media Types	Plain, Recycled, Coated, Envelope
Warm-up Time	Less than 5 minutes
