2.Replacement and Adjustment
97
Fold Adjustments

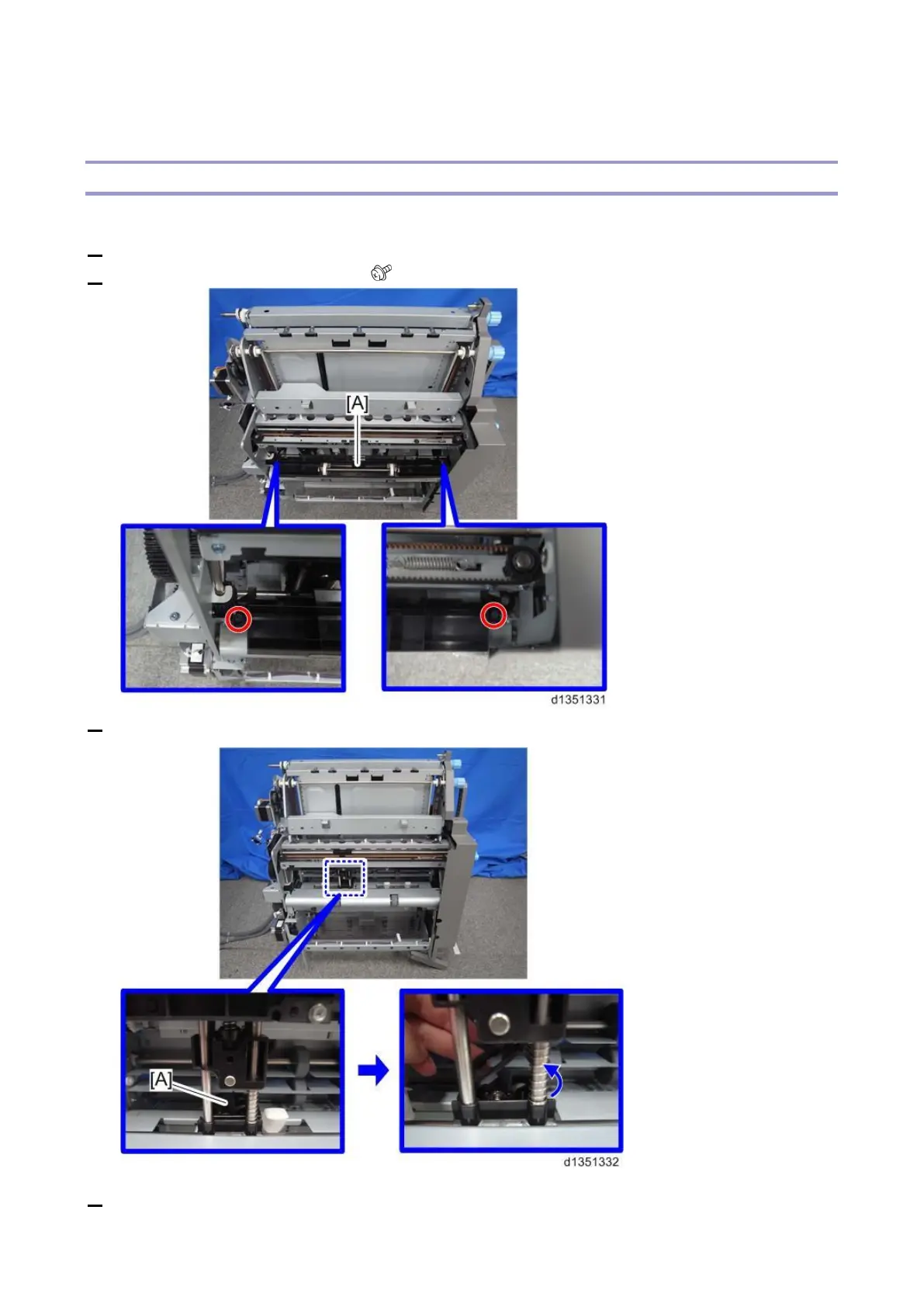

Adjusting the Alignment of the Flat Fold Rollers
To adjust the folding strength, adjust the difference in vertical alignment between the flat fold rollers.
1. Remove the saddle stitch unit (Saddle Stitch Unit).
2. Remove the fold plate bracket [A] ( x 2)
3. Open the bracket [A] of the flat fold roller.
4. Adjust the position of the flat fold lower roller [A] to adjust the difference in alignment between the
To Next Page
