Ricoh SR3290 - Electrical Component Layout

1.Detailed Descriptions
17

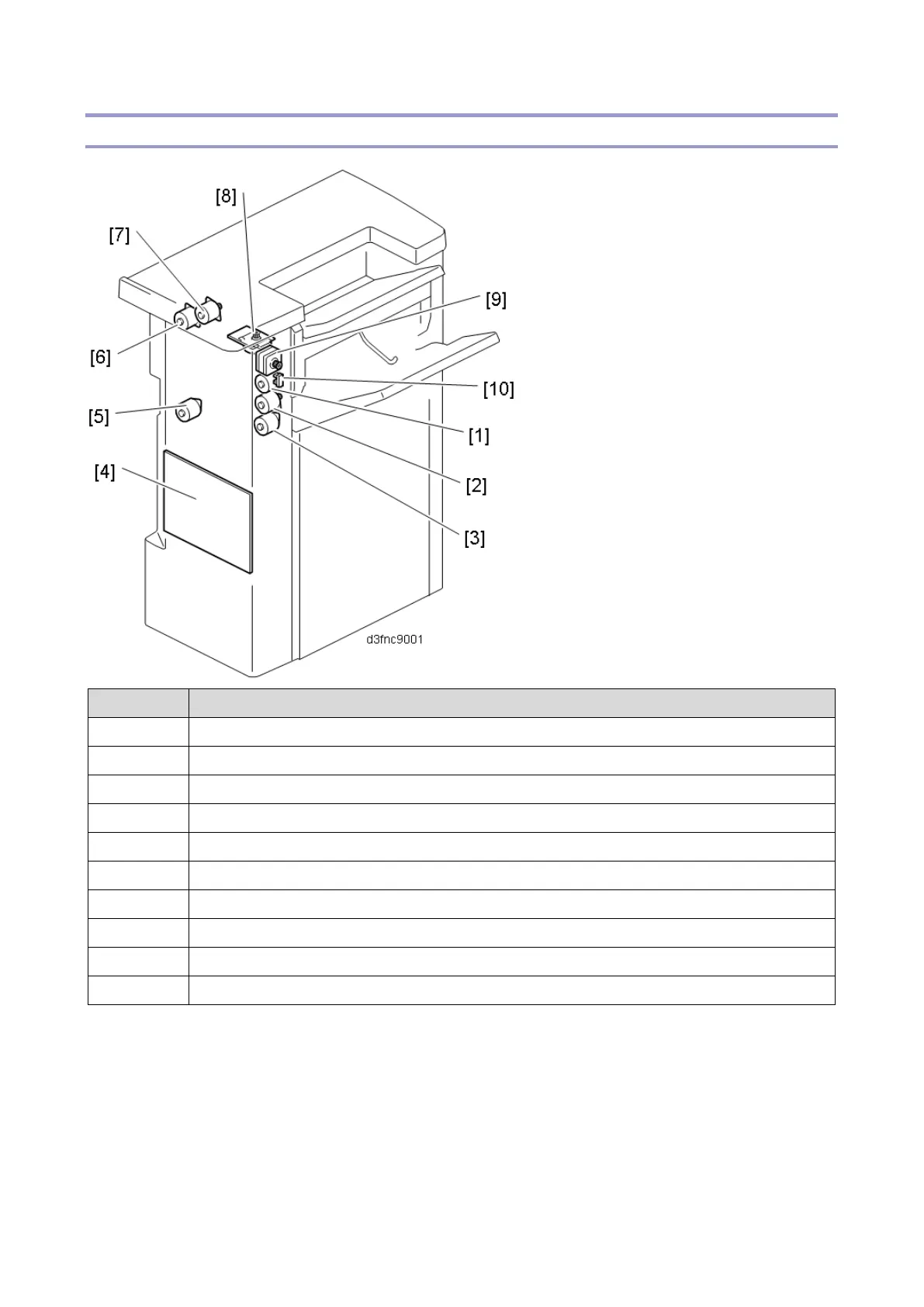

Electrical Component Layout
No.
Part
1
Exit Motor (DCM4)
2
Transport Motor (DCM3)
3
Positioning Roller Motor (DCM14)
4
Controller Board (PCB1)
5
Pre-stack Transport Motor (DCM5)
6
Entrance Transport Motor (DCM1)
7
Horizontal Transport Motor (DCM2)
8
Tray Lift Motor (DCM9)
9
Paper Guide Motor (STM18)
10
Paper Guide HP Sensor (S50)
