Ricoh SR3290 - Corner Stapling

1.Detailed Descriptions
34

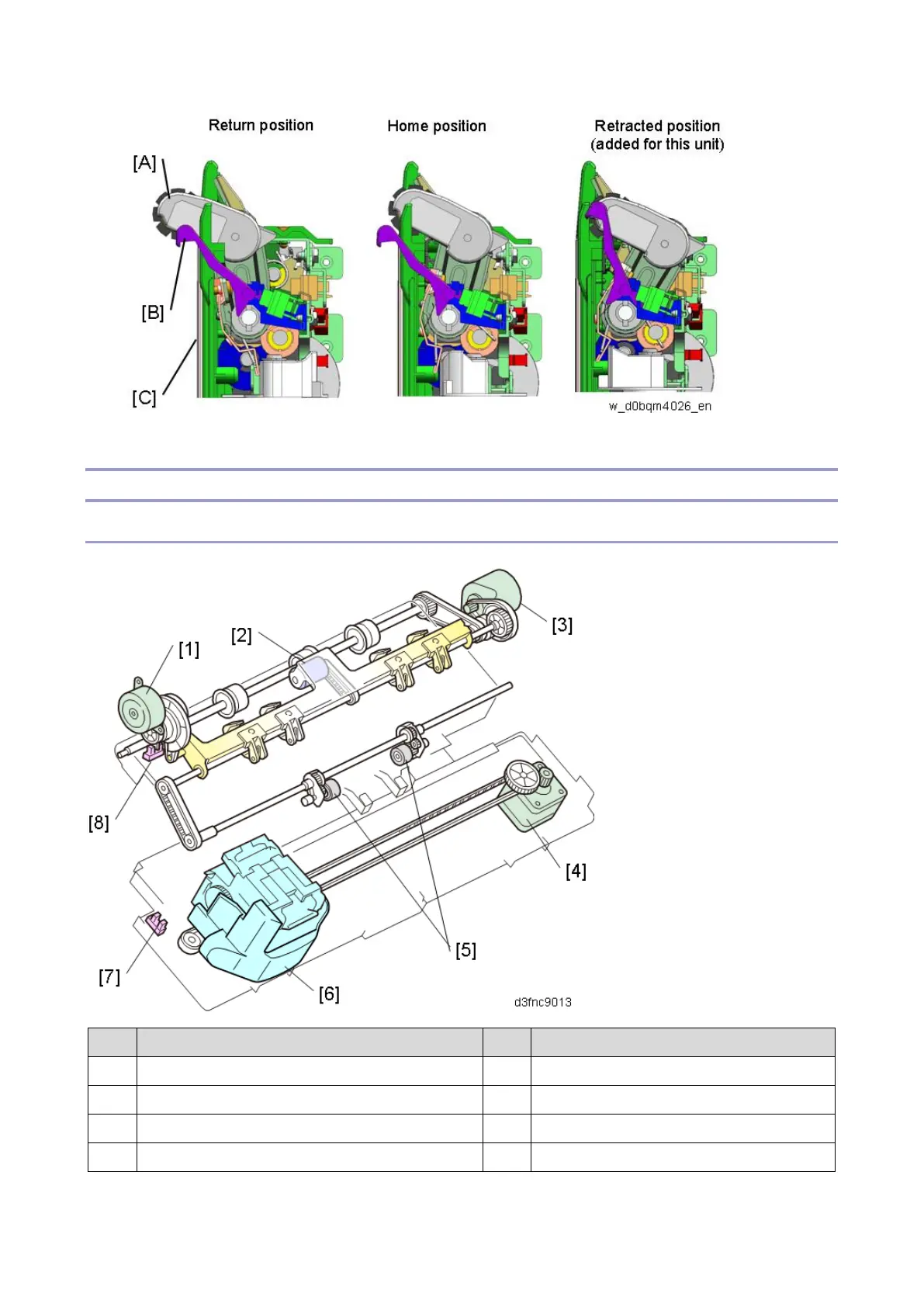

Corner Stapling
Components
No.
Name
No.
Name
1
Positioning Roller Shift Motor (STM5)
5
Drag Roller
2
Positioning Roller
6
Stapler
3
Exit Motor (DCM4)
7
Stapler Move HP Sensor (S23)
4
Corner Stapler Movement Motor (STM7)
8
Positioning Roller HP Sensor (S28)
