1.Detailed Descriptions
35

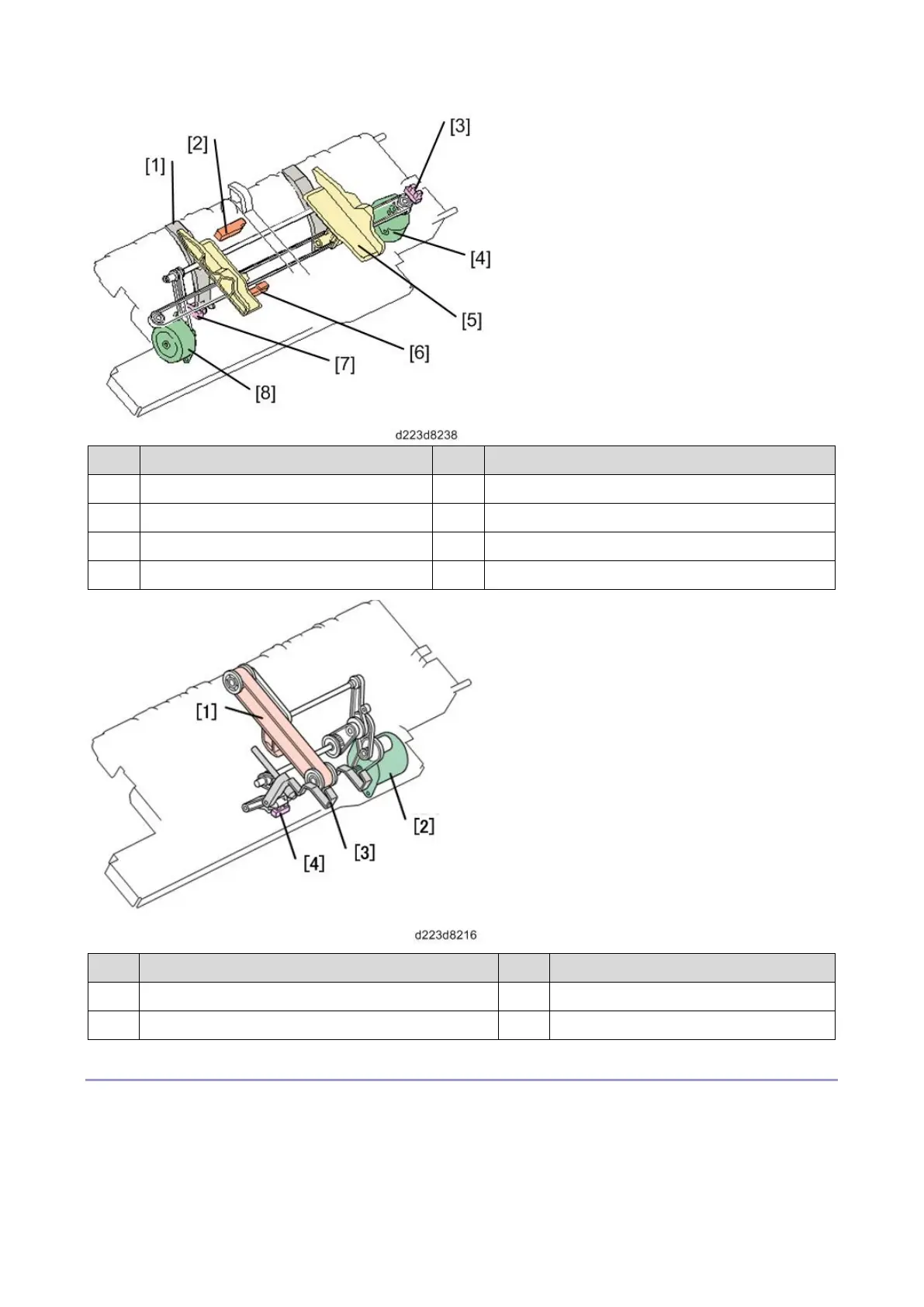

No.
Name
No.
Name
1
Edge Guide
5
Jogger Fence
2
Upper Tray Exit Sensor
6
Staple Tray Paper Sensor (S31)
3
Jogger Fence HP Sensor (S25)
7
Leading Edge Guide HP Sensor (S33)
4
Jogger Motor (STM1)
8
Leading Edge Guide Motor (STM6)
No.
Name
No.
Name
1
Feed-out Belt (with stack feed-out pawl)
3
Trailing Edge Fence
2
Feed-out Belt Motor (DCM7)
4
Feed-out Belt HP Sensor (S12)
Edge Guide
This machine applies a corner staple to the paper stack while it is hanging out of the exit. At this time, to
prevent the paper stack from dropping to the upper tray, the edge guide [D] comes out of the unit. The
edge guide operates as follows:
1. When a job starts, the upper tray guide plate [A] shifts up.
