Ricoh SR3290 - Staple Tray Paper Sensor (S31); Feed-Out Belt HP Sensor (S12)

2.Replacement and Adjustment
75

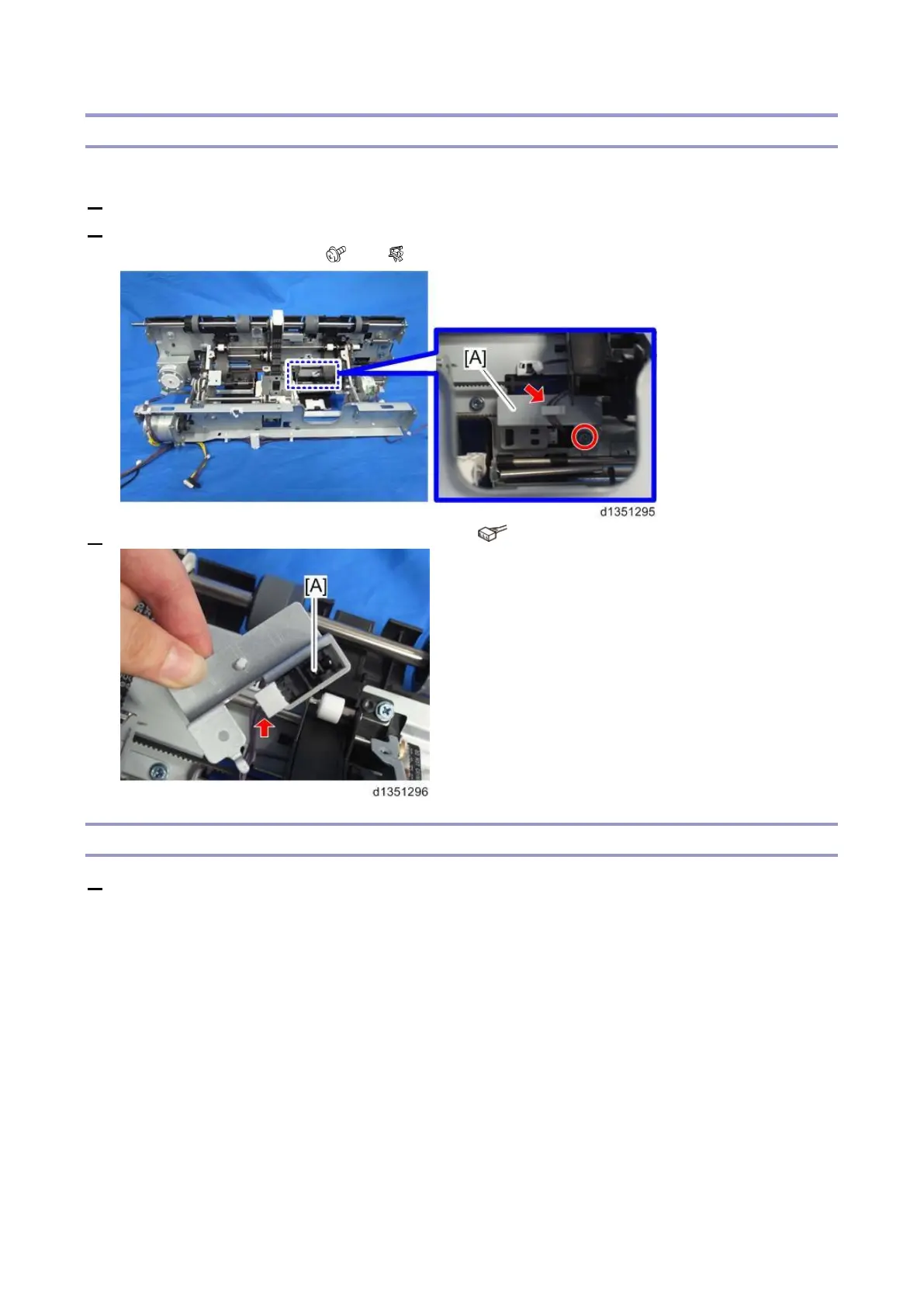

Staple Tray Paper Sensor (S31)
1. Remove the trailing edge alignment unit (Trailing Edge Alignment Unit).
2. Remove the Staple Tray Paper Sensor (S31) together with the bracket [A] from the part with the
trailing-edge alignment unit ( x 1, x 1).
3. Remove the Staple Tray Paper Sensor (S31) [A] ( x 1).
Feed-out Belt HP Sensor (S12)
1. Remove the corner stapling unit (Corner Stapling Unit).
