Ricoh SR3290 - Transport Layout; Proof Transport Layout (Drive)

1.Detailed Descriptions
22

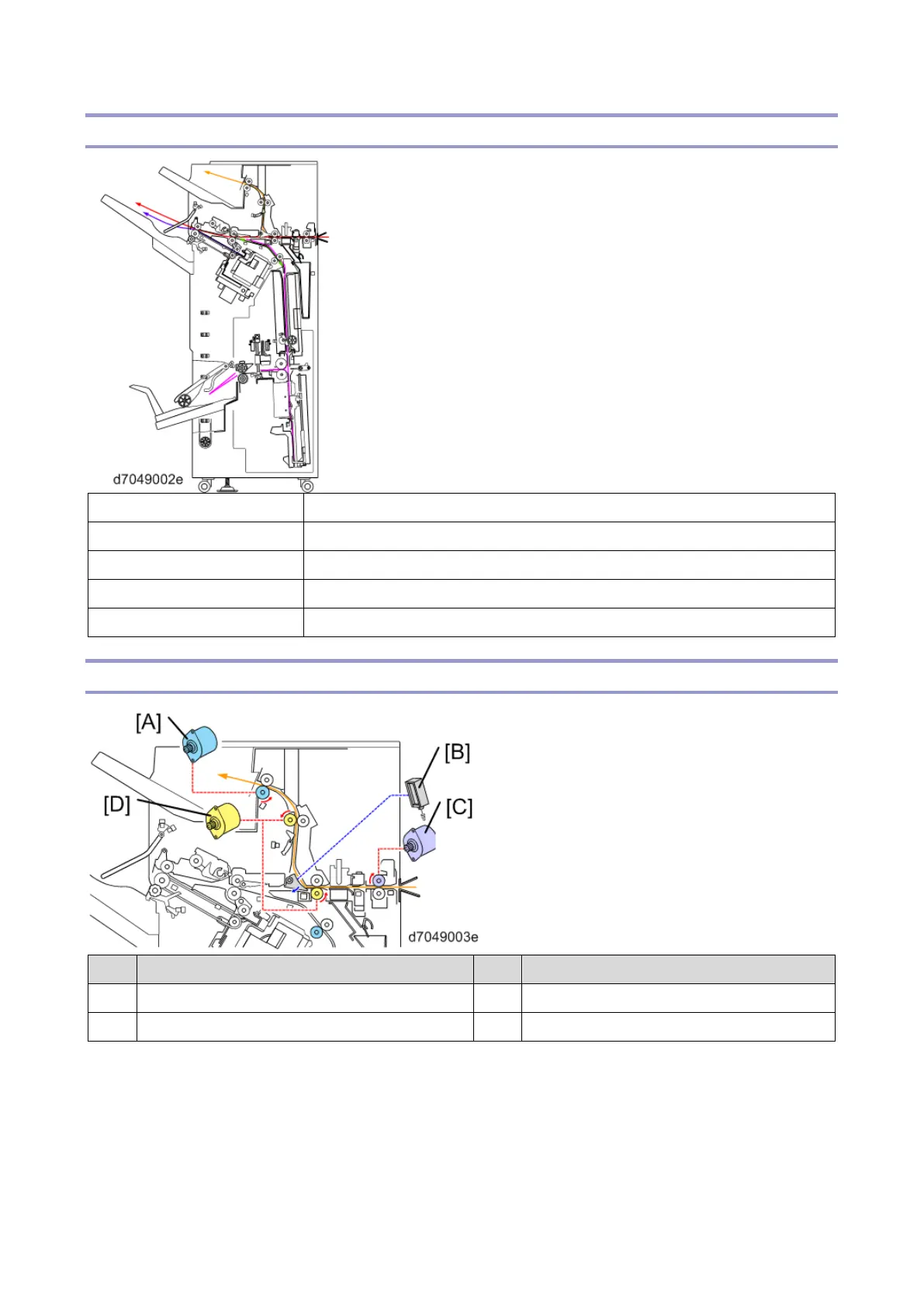

Transport Layout
Red
Straight Through Path
Orange
Proof Path
Green
Pre-stack Path
Purple
Corner Staple Path
Pink
Booklet Staple Path
Proof Transport Layout (Drive)
No.
Name
No.
Name
A
Exit Motor (DCM4)
C
Entrance Transport Motor (DCM1)
B
Upper Junction Gate Solenoid (SOL1)
D
Horizontal Transport Motor (DCM2)
