2.Replacement and Adjustment
88

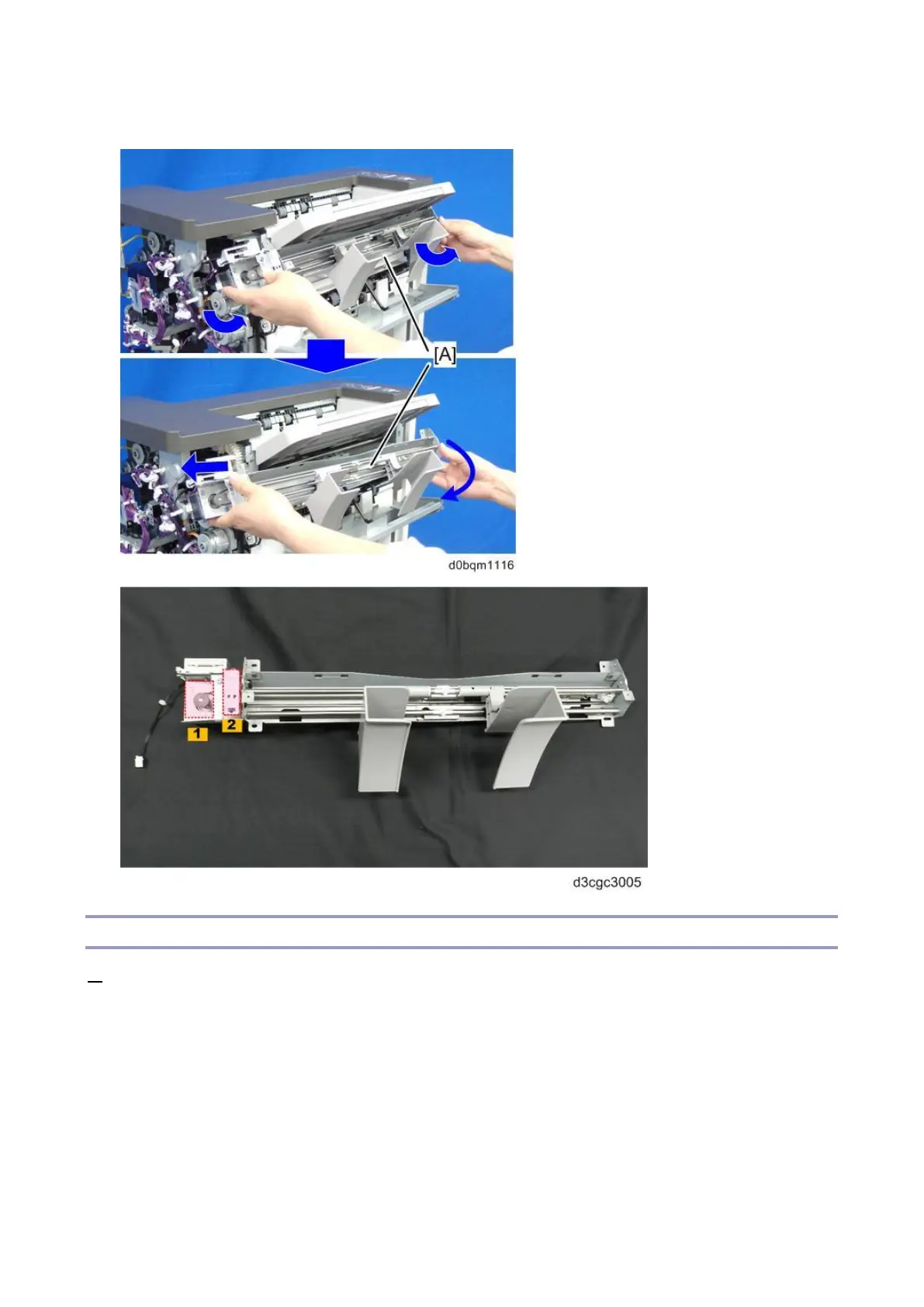

position sensor bracket [2].
Paper Guide HP Sensor (S50)
1. Remove the left upper cover. (Left Upper Cover)
