Ricoh SR3290 - Main Unit (Motors); Stacking Sponge Roller Lift Motor (DCM6); Leading Edge Guide Motor (STM6)

2.Replacement and Adjustment
68
Main Unit (Motors)

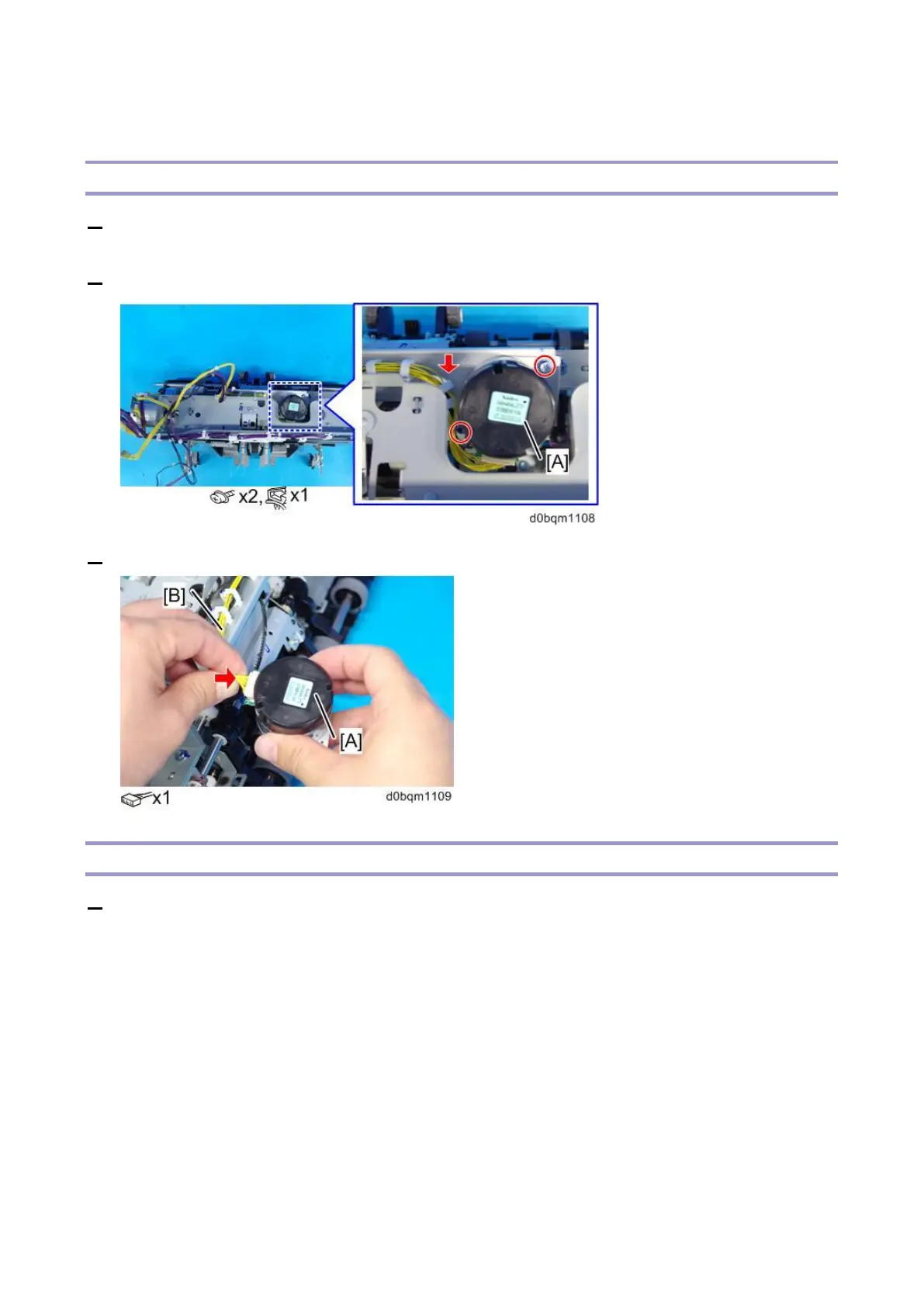

Stacking Sponge Roller Lift Motor (DCM6)
1. Remove the trailing edge alignment unit from the corner stapling unit (Trailing Edge Alignment
Unit).
2. Remove the Stacking Sponge Roller Lift Motor (DCM6) [A].
3. Disconnect the harness [B] from the Stacking Sponge Roller Lift Motor (DCM6) [A].
Leading Edge Guide Motor (STM6)
1. Remove the trailing edge alignment unit (Trailing Edge Alignment Unit).
