Upper Tray Shift Drive / Limit Sensor / Full Sensor
Upper Tray Shift Up/down

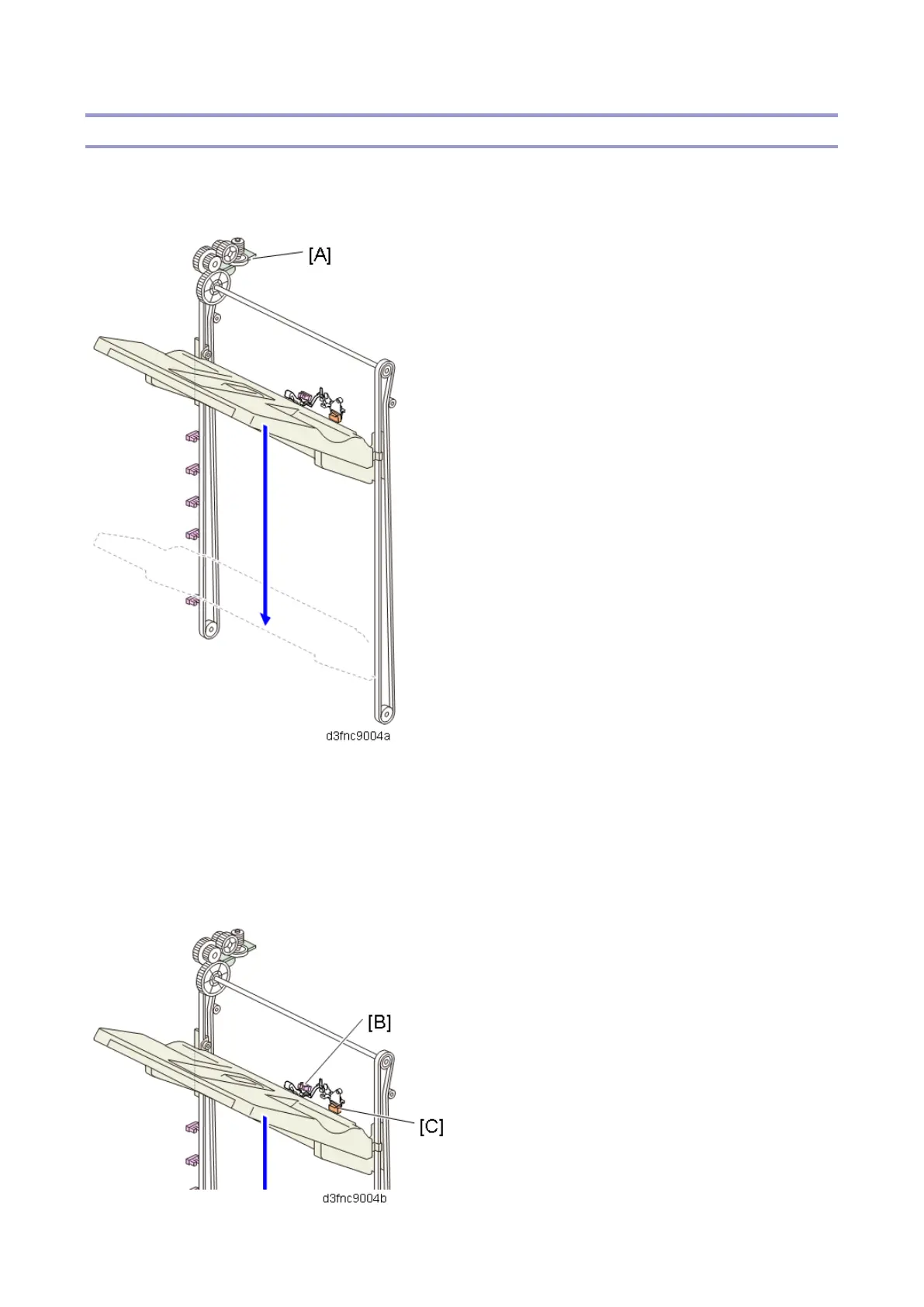

The Tray Lift Motor (DCM9) [A] moves the upper tray up/down.
Upper-position Detection
With the actuator, the Shift Tray Paper Height Sensor (S35) [B] detects the upper position of the tray
(without output paper). To prevent too much moving upward, the Upper Tray Height Limit Switch (SW3)
(interlock switch) [C] is installed. When the upper tray moves up to the upper position but doesn’t stop,
the forced stop switch is pushed and the tray shift motor stops.
