1.Detailed Descriptions
26

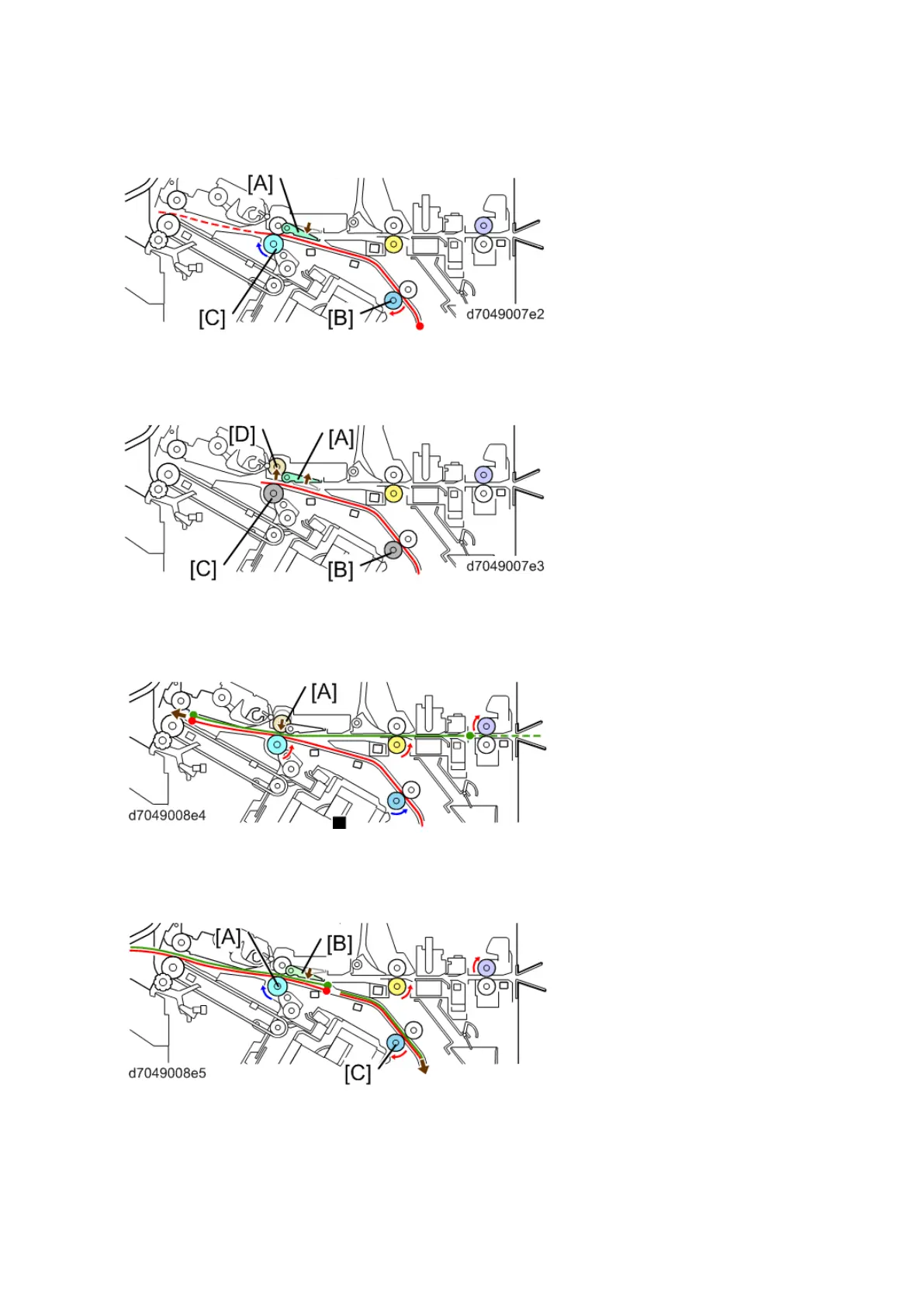

2. The pre-stack junction gate [A] drops (closes) and the relay transport roller [C] rotates in reverse.
The pre-stack roller [B] rotates to transport paper to the pre-stack position.
3. The rotation of the relay transport roller [C] and the pre-stack roller [B] stops, and the pre-stack
junction gate [A] moves up (opens). The shift roller [D] moves up to release the pressure between
itself [D] and the relay transport roller [C].
4. The following sheet comes thorough the entrance and reaches the relay transport path. After that,
the shift roller [A] drops to press the pre-stacked sheet and the following sheet. With the pre-
stacked sheet, the following sheet goes toward the exit (does not pass through completely).
5. The pre-stack junction gate [B] drops (closes) again, and the relay transport roller [A] rotates in
reverse and the pre-stack roller [C] rotates to send two sheets paper (pre-stacked sheet and the
following sheet) to the booklet stapling path.
