1.Detailed Descriptions
6

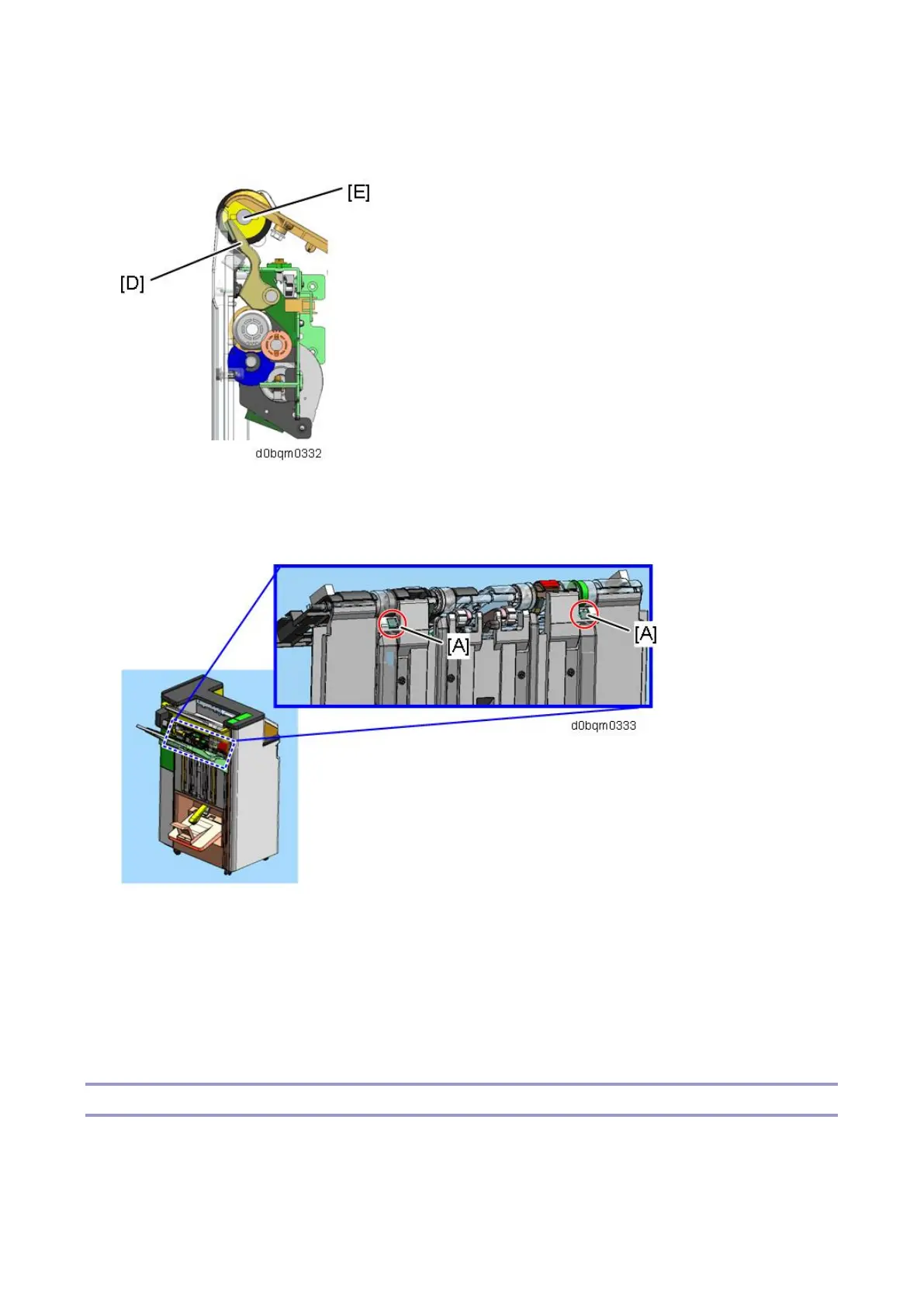

By making the leading edge of the paper stacking holder [D] thinner, a sufficient paper exit roller
gap [E] is secured for retraction.
• Sensors Added
Two sensors [A] (Sub Height Sensor (Front and Rear)) have been added to detect stapled sheets.
When sheets stapled at one point are stacked(corner stapling), this prevents the sheets from
colliding with the paper guide, edge guide and other sheets because of the stapled points being
stacked up. If one of the sensors detects sheets, the machine determines that the height limit has
been reached and stops printing.
Improved Replaceability of Staple Cartridge
The exterior of the stapler unit has been changed from a bracket to a resin cover.
A handle [A] has been integrated into the cover and a decal [B] indicating the part for operation has
been added.
