1.Detailed Descriptions
5

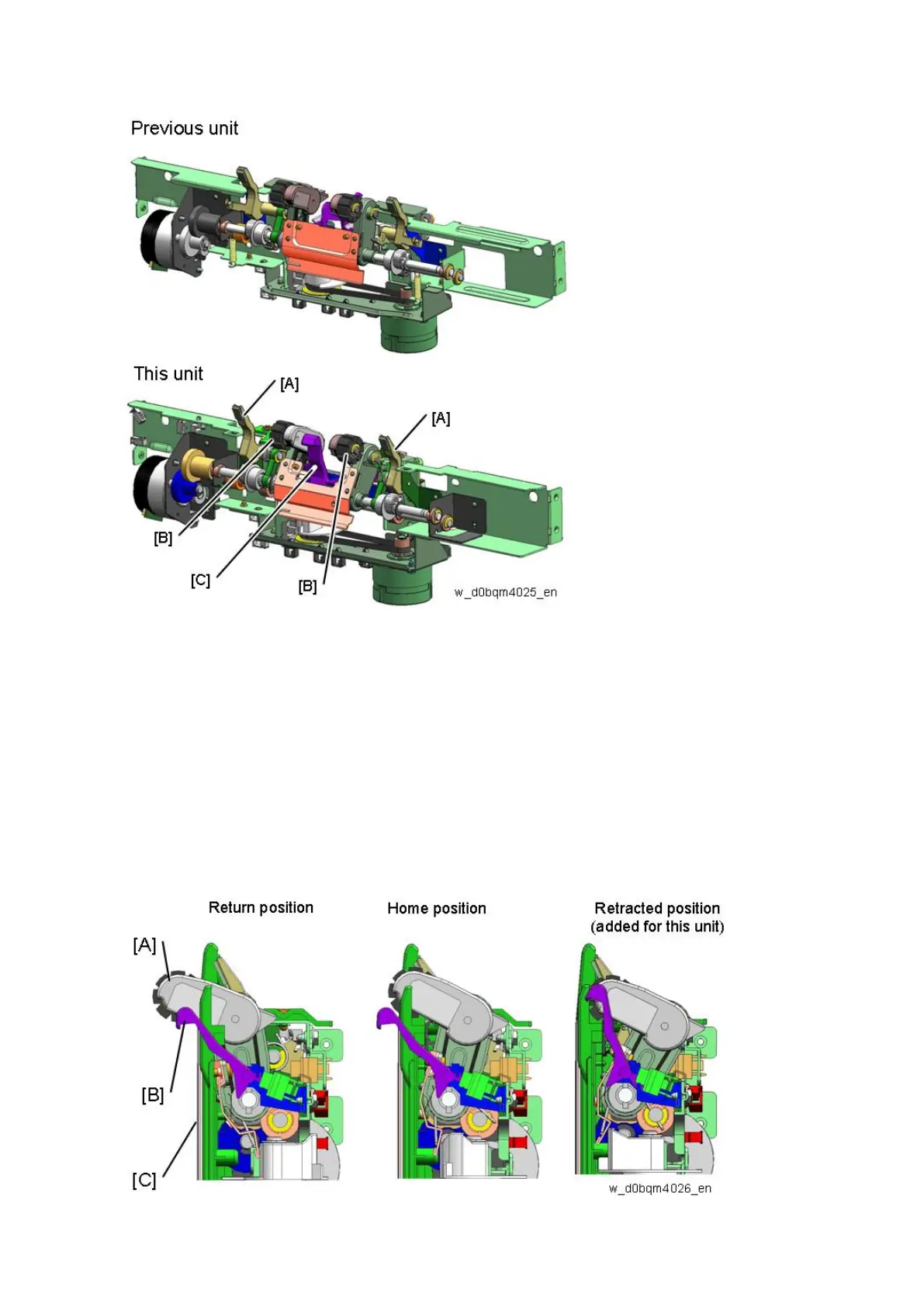

[A]: Paper Stacking Holder
[B]: Stacking Sponge Roller
[C]: Actuator for the Shift Tray Paper Height Sensor (S35)
The stacking sponge roller [A] and actuator [B] move after the paper delivery (to the return
position).
During paper delivery, these parts move to the home position and the stacking sponge roller is a
little bit retracted within the end fence.
On this machine, the stacking sponge roller [A] and actuator [B] are completely retracted within
the end fence when delivering stapled sheets to improve their stackability.
On the previous machine, the stapled jobs were also at the home position.
To Next Page
