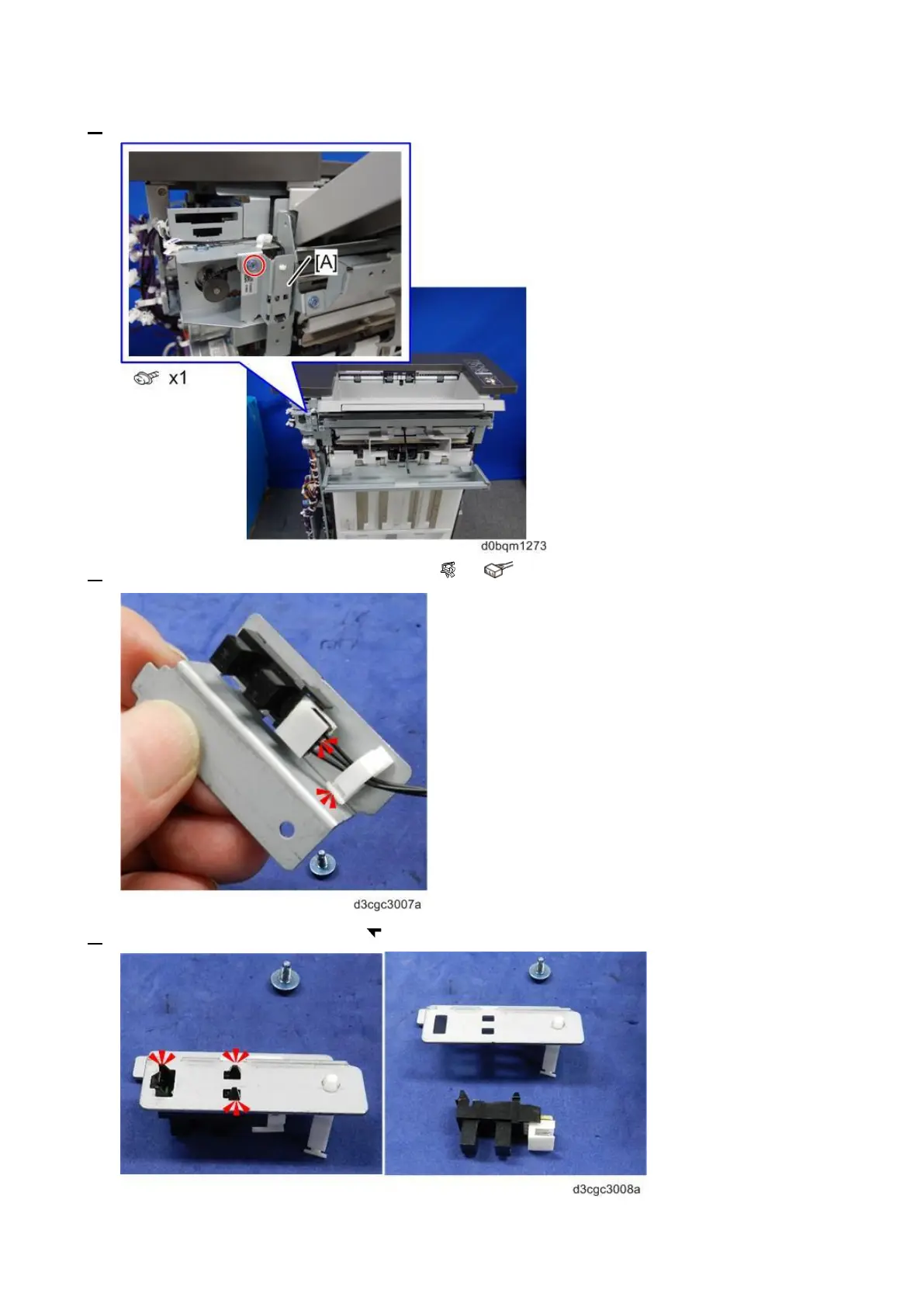

2. Remove the bracket [A] with the Paper Guide HP Sensor (S50).
3. Open the clamp and disconnect the sensor ( x1, x1).
4. Separate the sensor and bracket ( x3).
