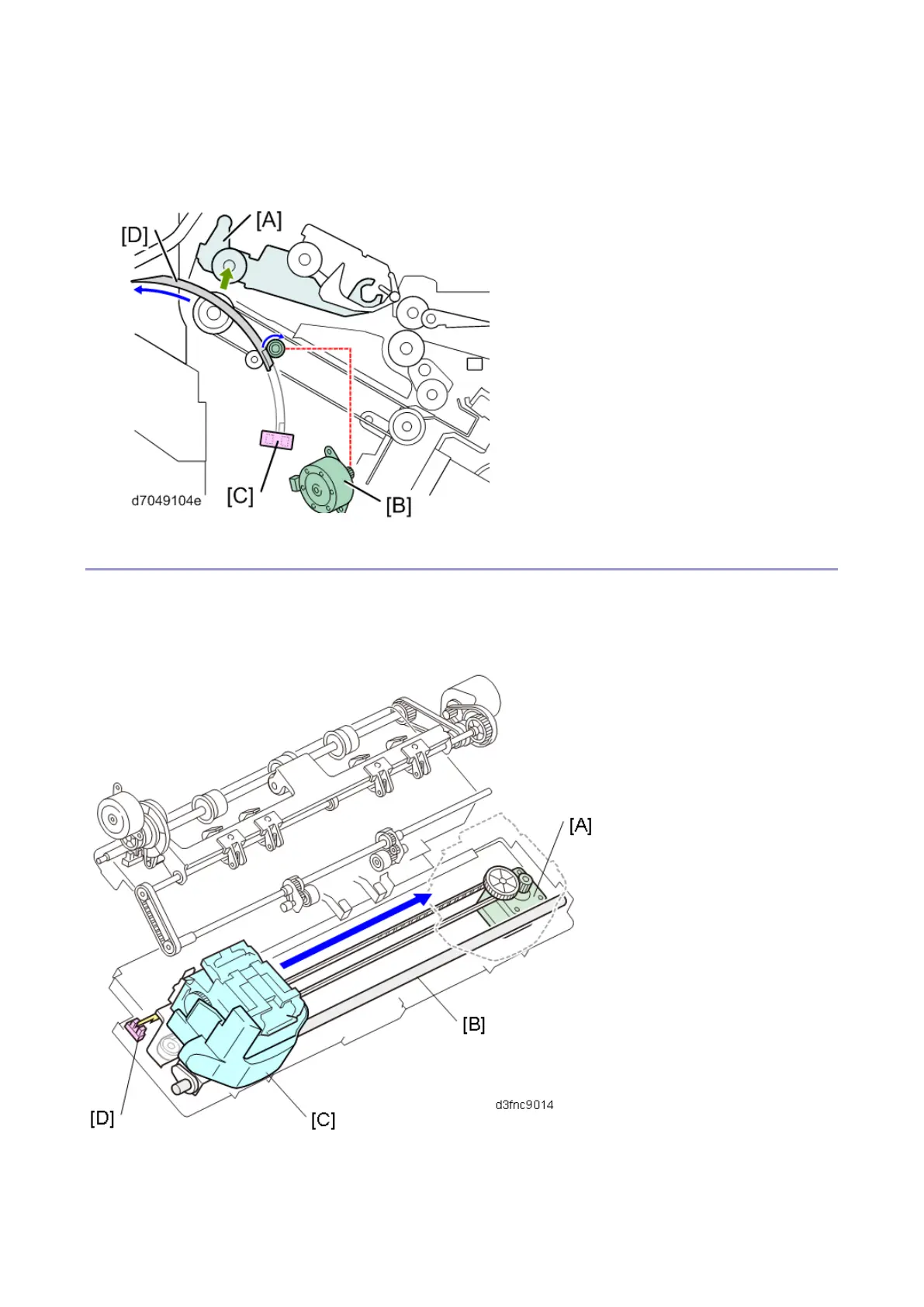

2. The Leading Edge Guide Motor (STM6) [B] drives to push the edge guide [D] out. The edge guide
retreats into the machine when the last sheet of a job is output (the Leading Edge Guide HP
Sensor (S33) [C] detects the edge guide).
Stapler Movement
The Corner Stapler Movement Motor (STM7) [A] moves the stapler [C] along the guide rod [B]. After a
job finishes, the stapler [C] returns to its HP (the Stapler Move HP Sensor (S23) [D] detects the base of
the stapler).
