Condition 2
The feeler is raised.

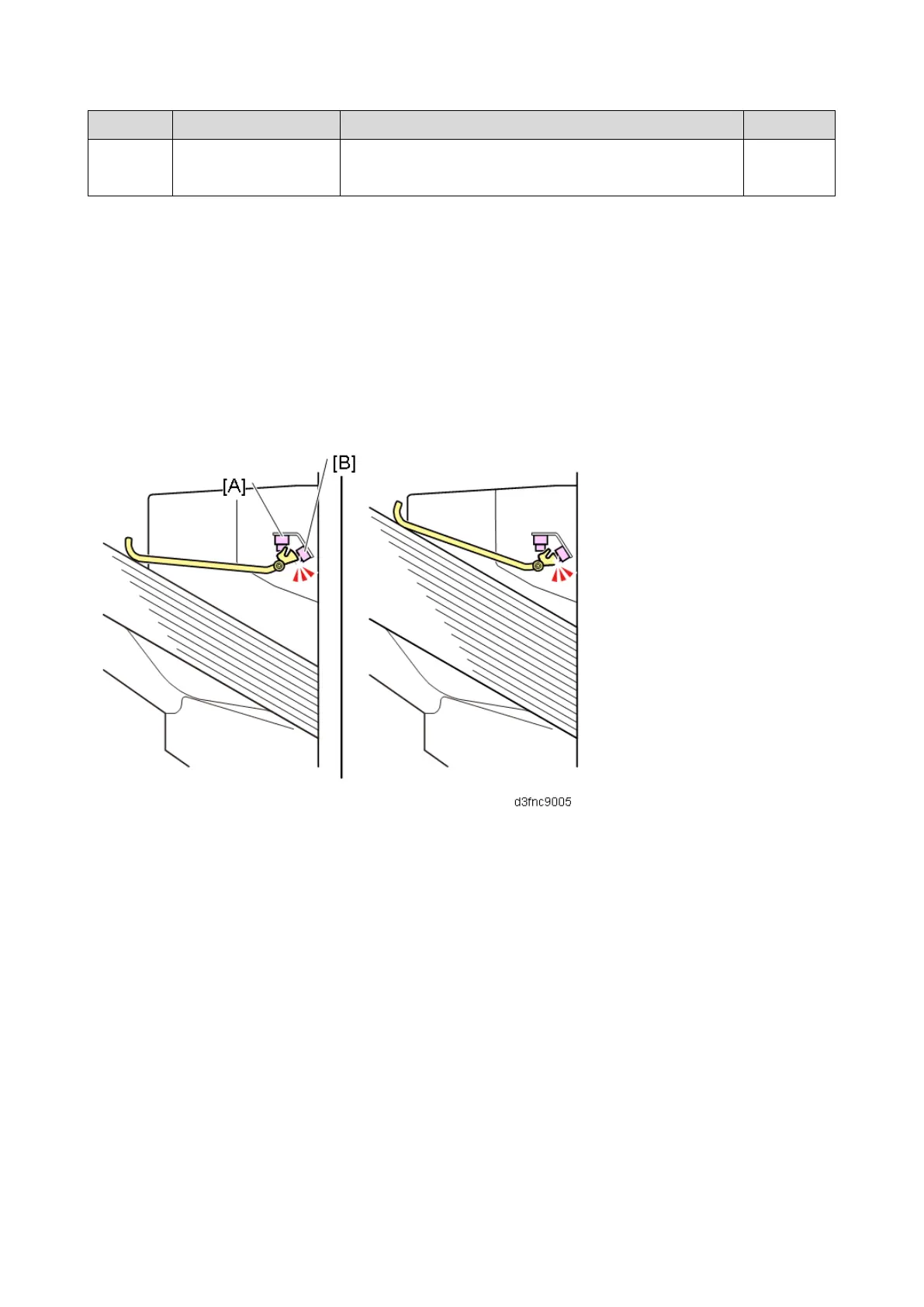

• Booklet Stack Height Sensor 1 (S26) [A] (SP6-123-036 INPUT Check) : OFF
• Booklet Stack Height Sensor 2 (S27) [B] (SP6-123-037 INPUT Check) : ON
If the above condition continues for 13 seconds, the machine detects that the stacking limit has been
reached.
The purpose is to accurately detect tray full for stacks of Z-folded paper, or incorrectly stacked
documents.
Condition 3
Shift tray detection input check: SP6-123-035 normally set to "0" (default), tray not full.
[A]: Shift Tray Paper Height Sensor (S35)
