1.Detailed Descriptions
38

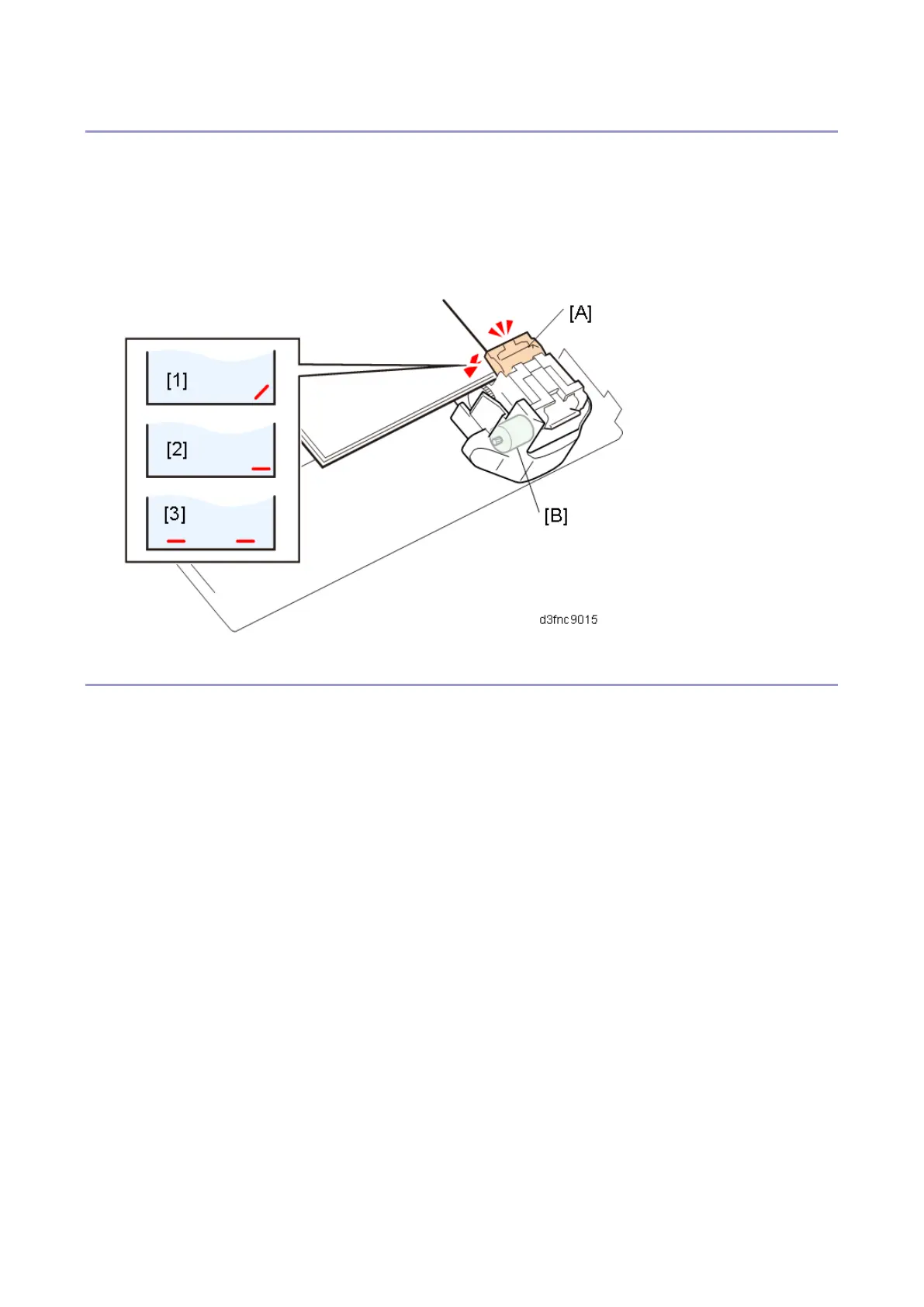

Stapling
The corner staple motor [B] pushes the staple hammer [A] down in order to staple the paper stack. The
stapling positions are as follows:
• For oblique stapling: [1]
• For horizontal stapling: [2]
• For horizontal stapling at 2 points: [3]
Feeding-out
The trailing edge fence [B] moves paper up to the proper position to output. Then the stack feed-out
pawl [A] that is attached to the stack feed-out belt [C] pushes the paper out. The Feed-out Belt Motor
(DCM7) [D] moves the stack feed-out pawl [A] and the trailing edge fence [B]. After a stack is output,
both the trailing edge fence [B] and stack feed-out pawl [A] return to their HP.
There are two types of stack output.
• 1. Pawl, exit roller: Small sizes (A4, LT, B4 SEF)
Output is done by the exit roller as described above.
• 2. Roller exit: A4, LT, B5 LEF
Only the exit roller is used to output the stack, without using the trailing edge fence and the stack
feed-out pawl.
For Large Sizes (A3, B4, LG, DLT)
• 1 to 10 sheets: Roller exit method
