1.Detailed Descriptions
49

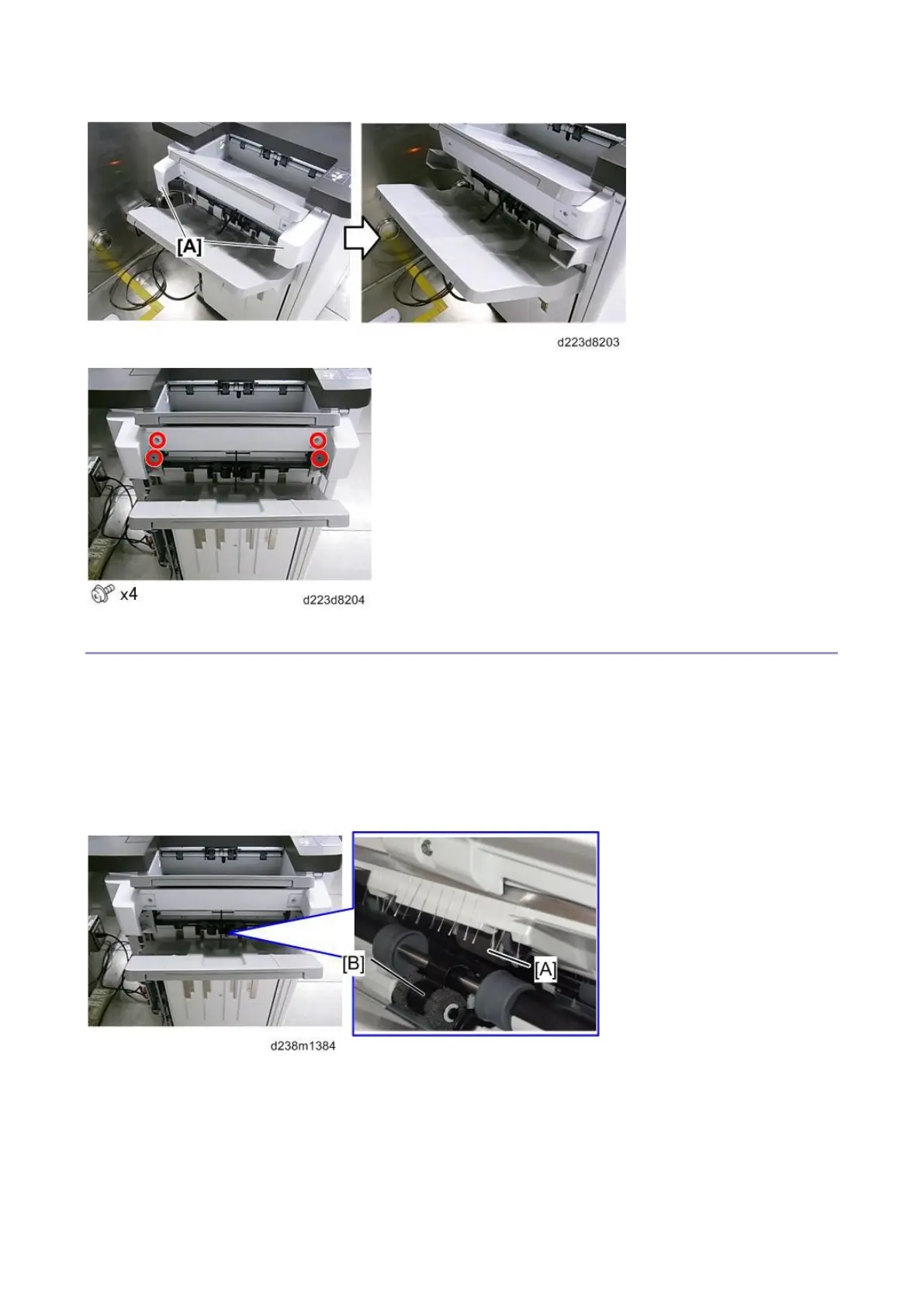

SP6-160-004 (Replacement Mode for Service)
It is easier to access the following parts after running SP-6-160-004.
• Positioning Roller [A]
The paper exit guide plate moves upwards and the positioning roller pops up in front for easier
access.
• Stacking Sponge Roller [B]
The paper exit guide plate moves upwards and the reverse roller can be accessed.
