2.Replacement and Adjustment
51

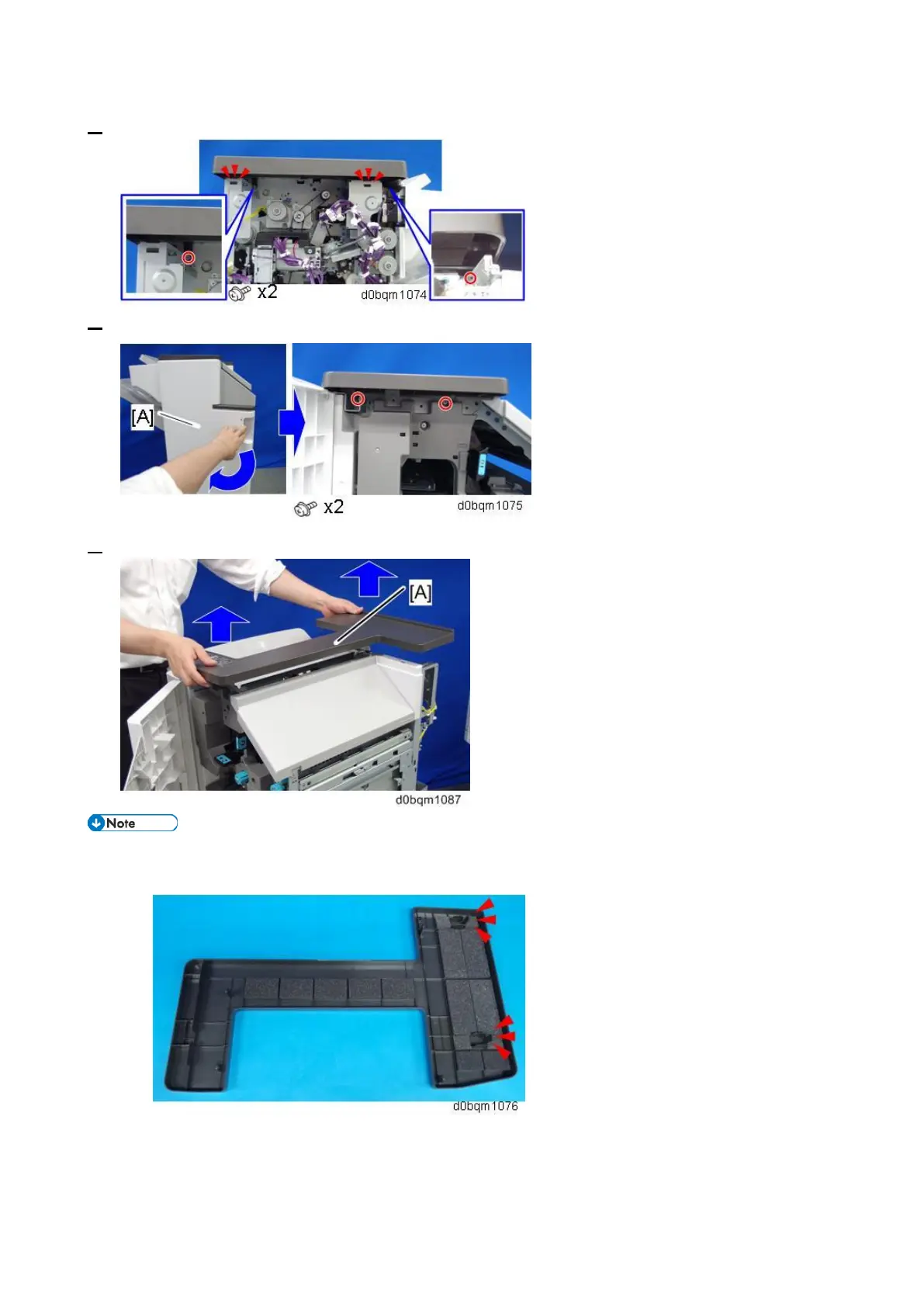

2. Remove the 2 screws and release the 2 hooks.
3. Open the front cover [A] and remove the 2 screws.
4. Remove the upper cover [A].
• When you detach or reattach the upper cover, be sure to check the locations of the hooks on
the cover.
