2.Replacement and Adjustment
57

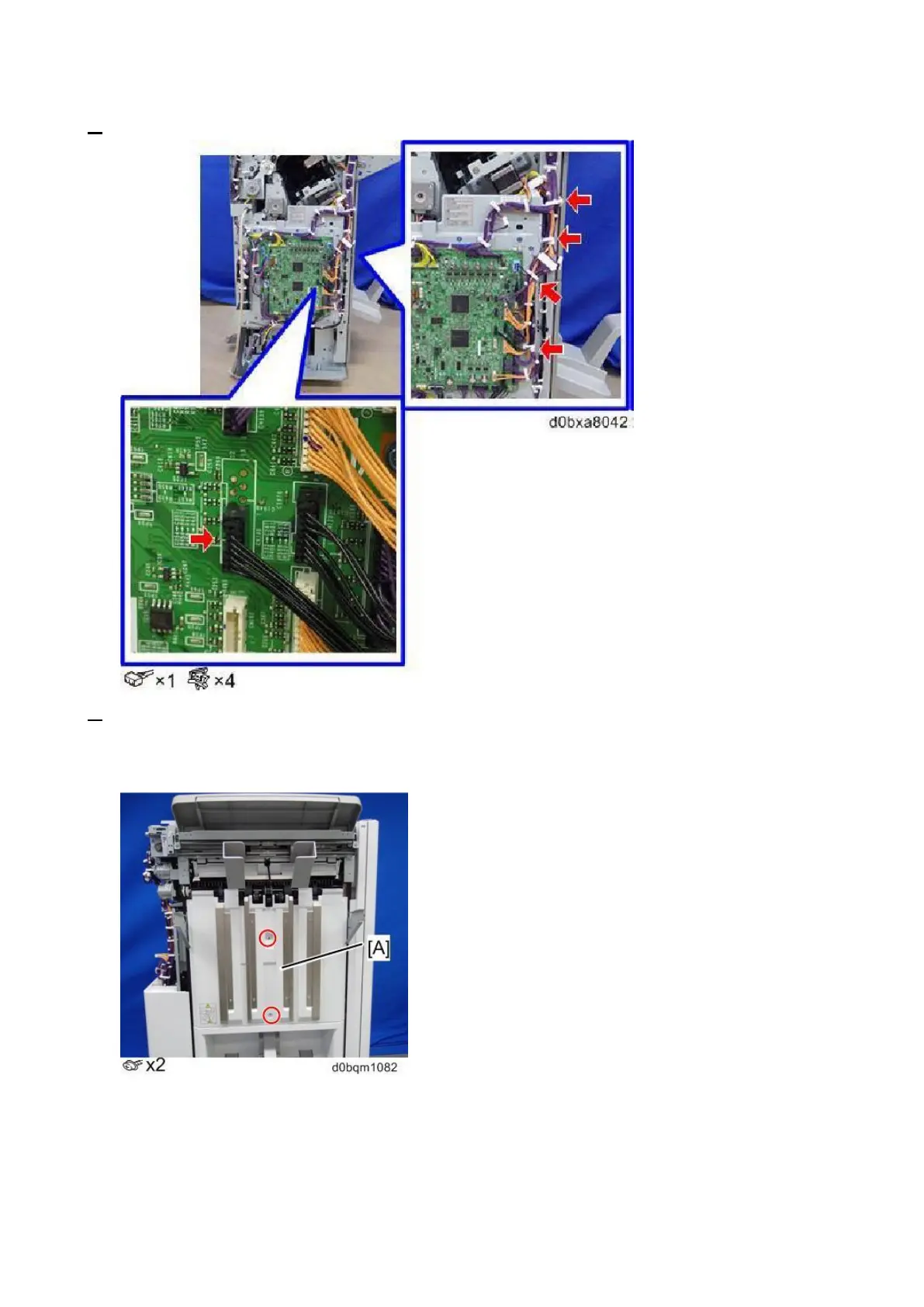

5. Disconnect the connector (CN180) and release the harness.
6. Remove the end fence [A].
When you remove the end fence, be careful with the harness beneath it.
Booklet Finisher SR3290
