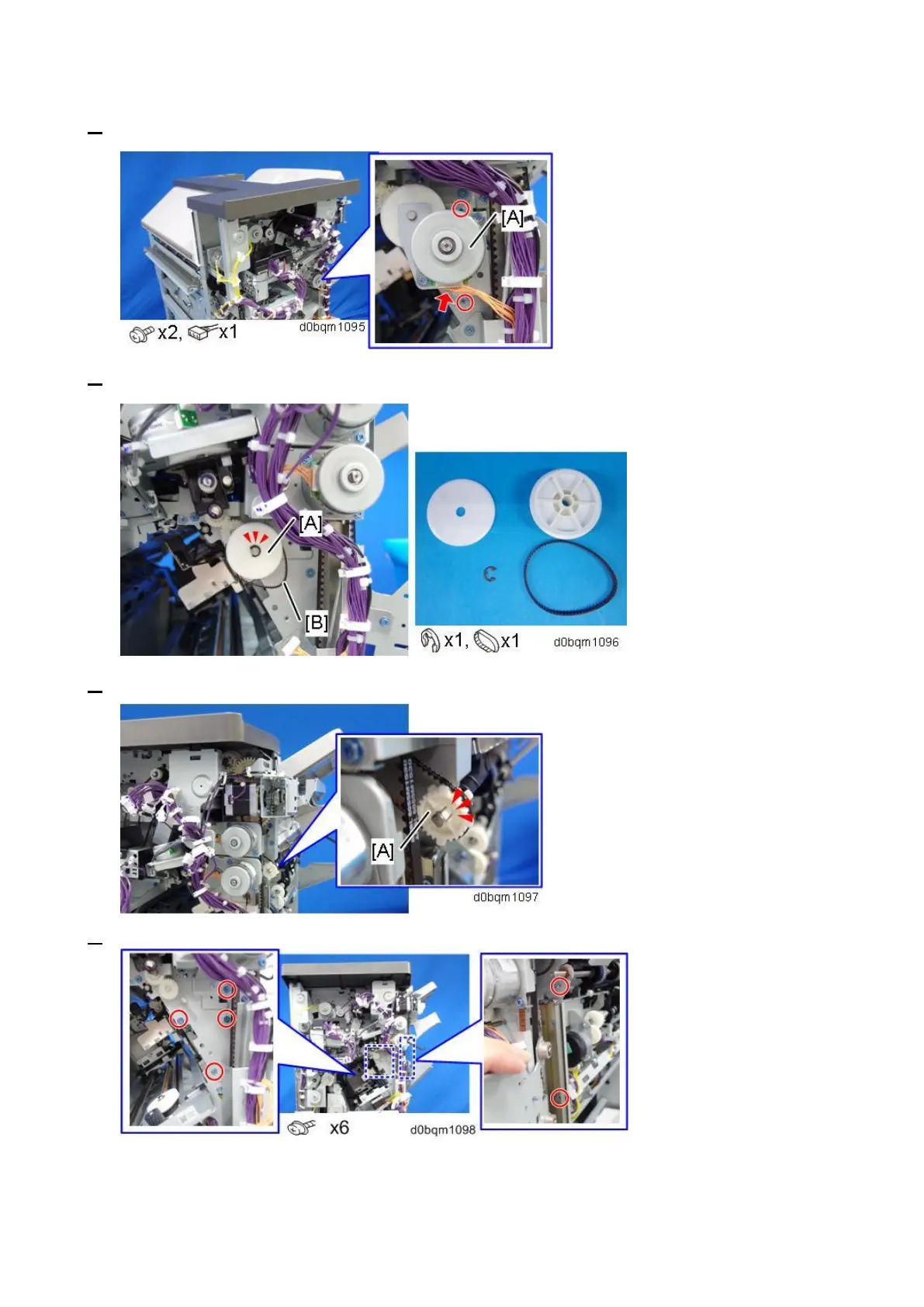

4. Remove the pressure release motor bracket [A] from the rear side of the finisher.
5. Remove the gear [A] and timing pulley [B] from the rear side of the finisher.
6. Remove the pulley [A] from the rear side of the finisher.
7. Remove 6 screws from the rear side of the finisher.
