2.Replacement and Adjustment
81

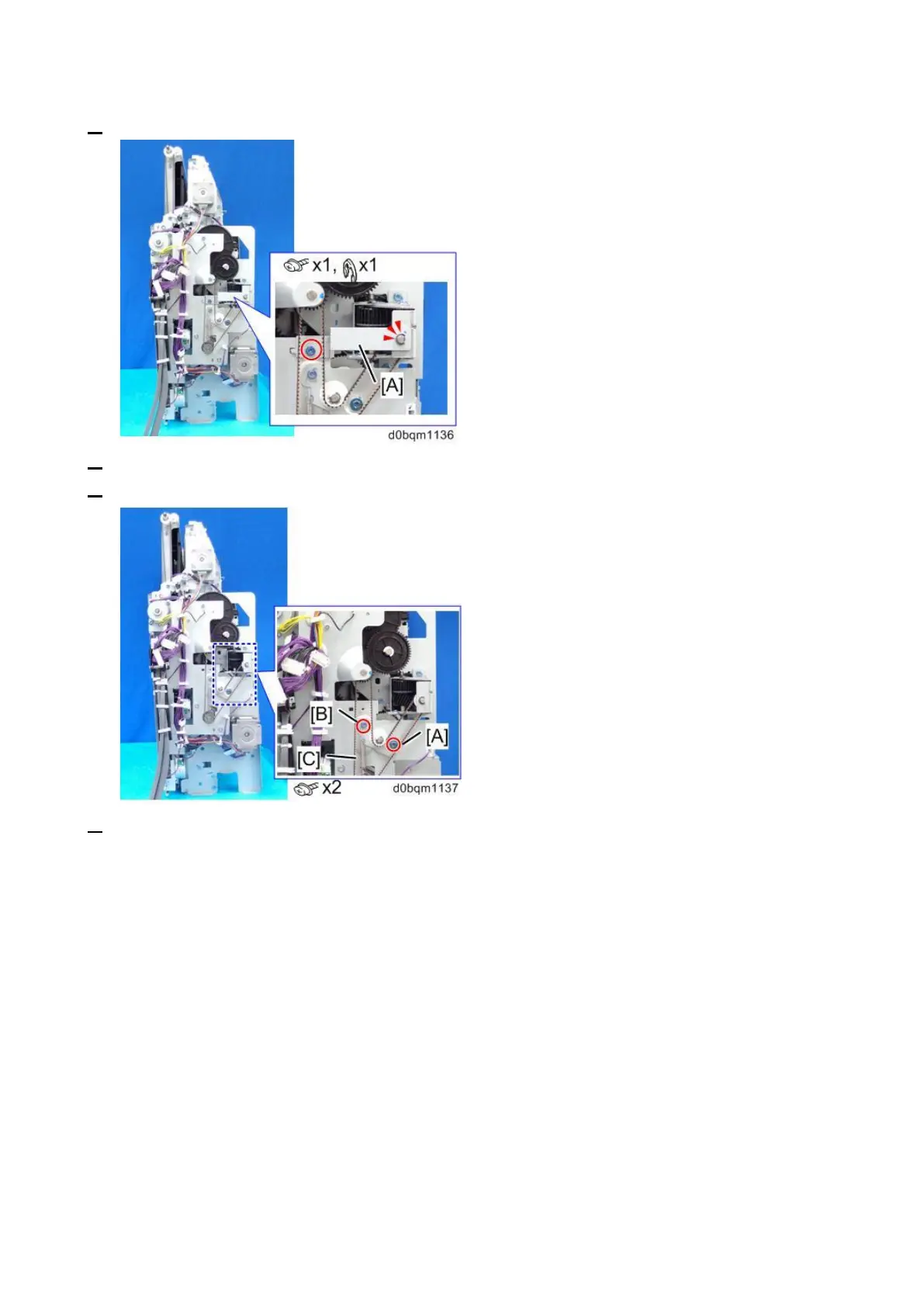

2. Remove the fixing bracket [A] on the saddle stitch unit.
3. Remove the screw [A] shown in the photo below.
4. Loosen the screw [B] to loosen the Press Fold Motor (STM10) belt [C].
5. Remove the clamps (indicated by red arrows) and connectors (pink arrows) from the Press Fold
Motor (STM10) unit.
