Ricoh SR3290 - Page 89

2.Replacement and Adjustment
83

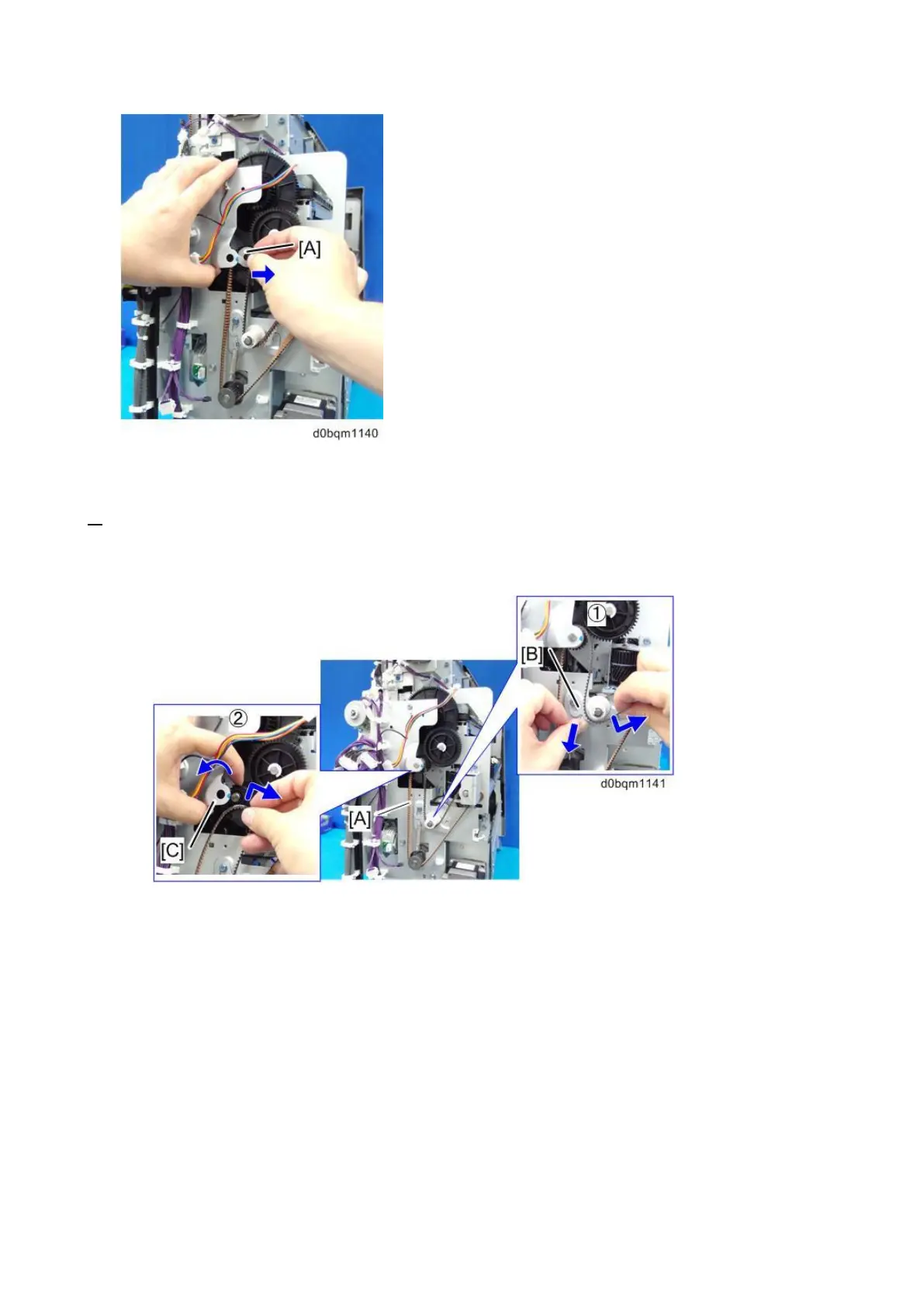

8. Remove the belt [A].
• Pulling down the bracket [B] securing the belt, remove the belt from the gear.
• Remove the belt from the gear, making sure not to touch the bracket [C].
