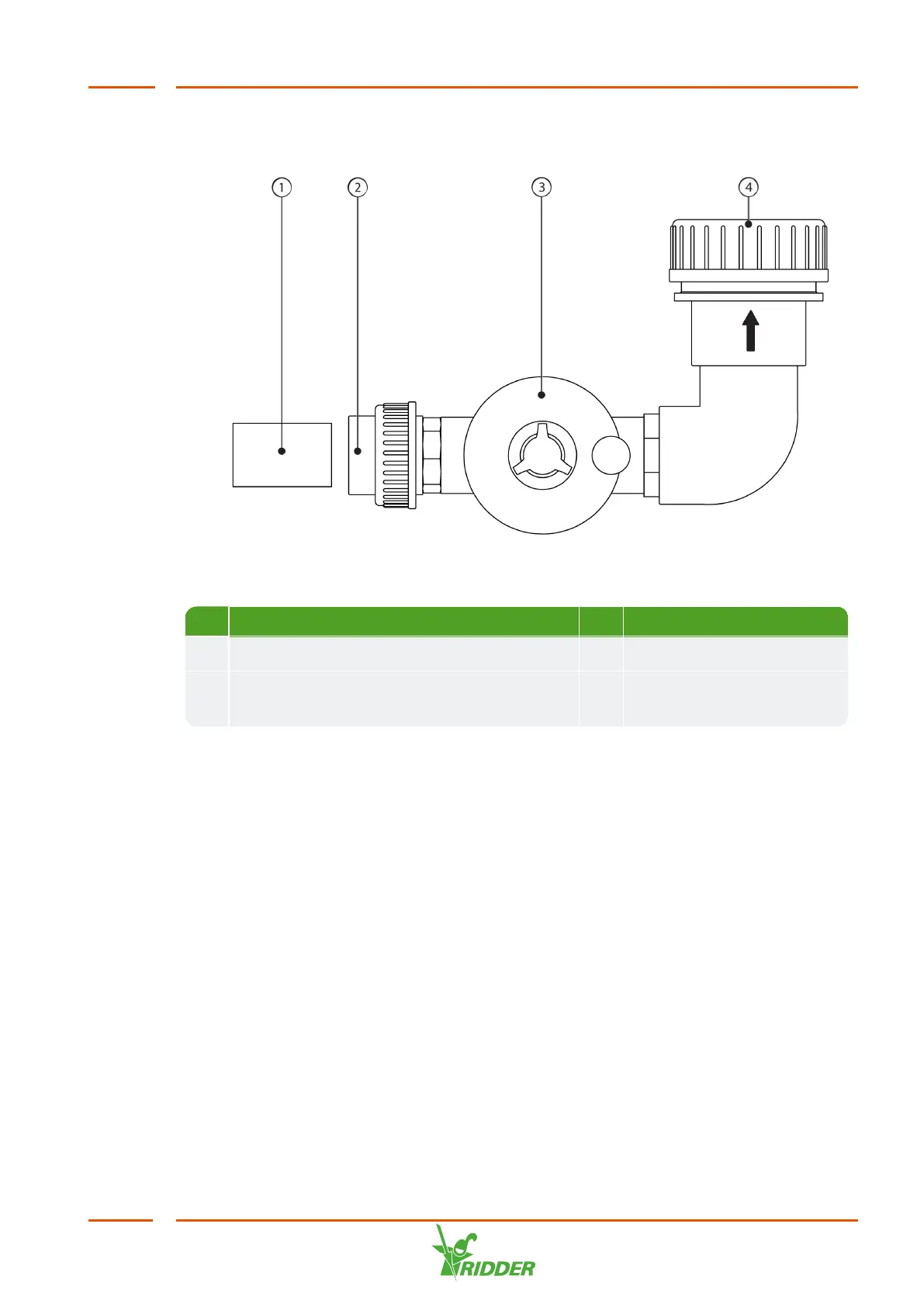

Figure 2-3 Filling module with float valve
No. Description No. Description
1 Dummy pipe for transport 3 Float valve
2 Connection point for fresh water, 50-mm
coupling
4 Connection point to mixing
tank
2.3.3 Pressure module with filter
The pressure module is located directly after the connection point of the irrigation
water distribution pipe. The pressure module guides some of the irrigation water to
the dosing module with the measurement module. The pressure module is equipped
with a pressure regulator that enables the pressure before the venturis (see section
"Dosing module" on page15) to be set to 2.2 bars. The pressure after the venturis is
always 0 bars. The screen filter in the pressure module prevents the venturis from
clogging.
