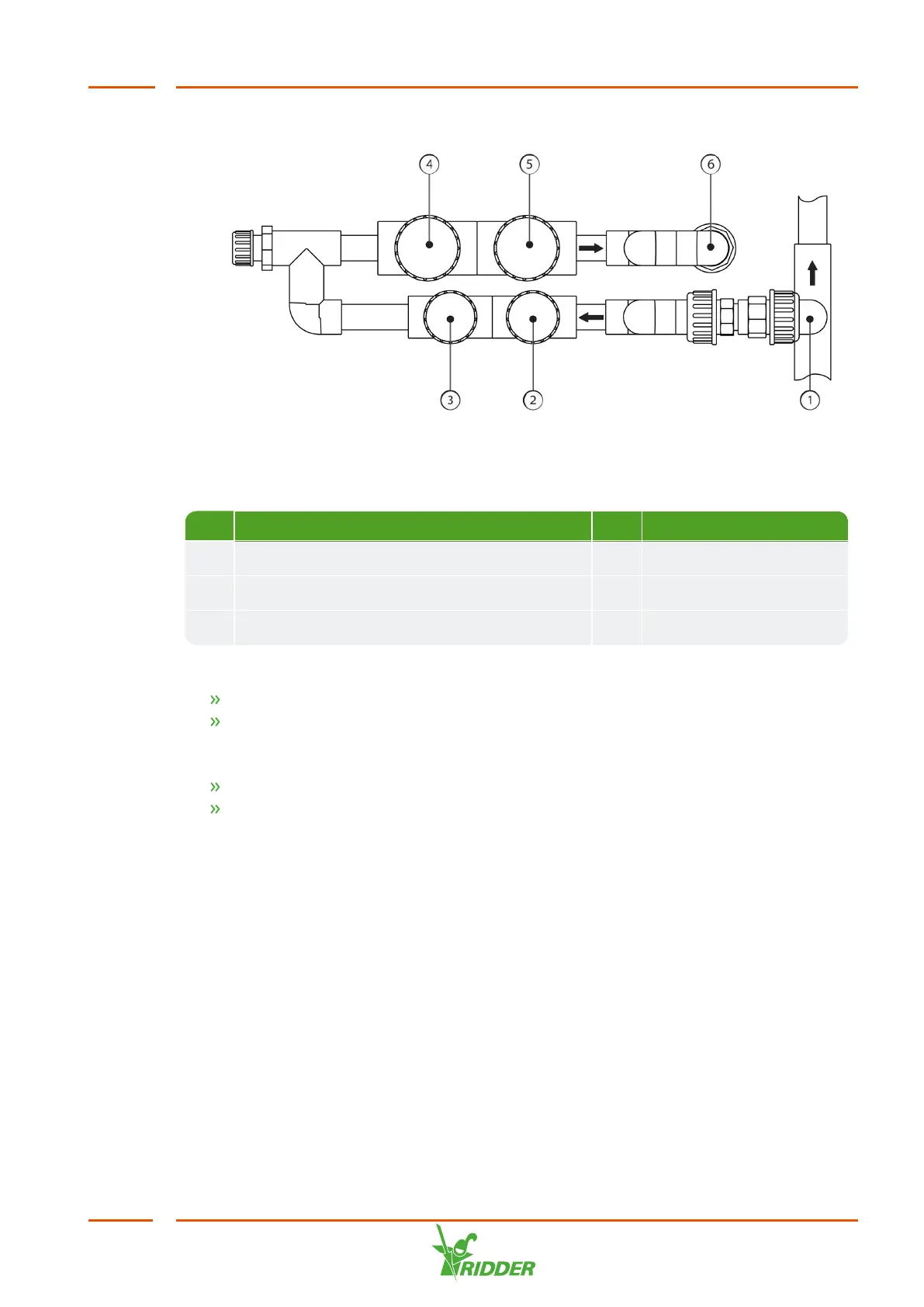

Figure 2-5 Measurement module
No. Description No. Description
1 Connection point from pressure module 4 pH control sensor
2 EC control sensor 5 pH verification sensor
3 EC verification sensor 6 Return to mixing tank
Depending on the configuration, the following sensors can be added:
EC sensor: the EC sensor measures the concentration of fertilizers in the water.
pH sensor: the pH sensor measures the acidity level of the water.
The FertiMiX-Go! is supplied with at least one EC sensor as standard.
If there is one EC / pH sensor: this is the control sensor.
If two EC / pH sensors are present: the verification sensor checks the
functioning of the control sensor.
Please consult the supplied OEM manuals for the correct use and maintenance of the
relevant components.
2.3.5 Dosing module
A dosing module consists of one or more dosing channels. Each fertilizer has its own
dosing channel (a maximum of four). The last channel is used to dose acid or alkali
(lye). This is optional.
Before the water reaches the dosing module, some of the water flows past the
measurement module. This is where the EC and/or pH level is measured. See
"Measurement module (sensors)" on the previous page for more information.
FertiMiX
15
