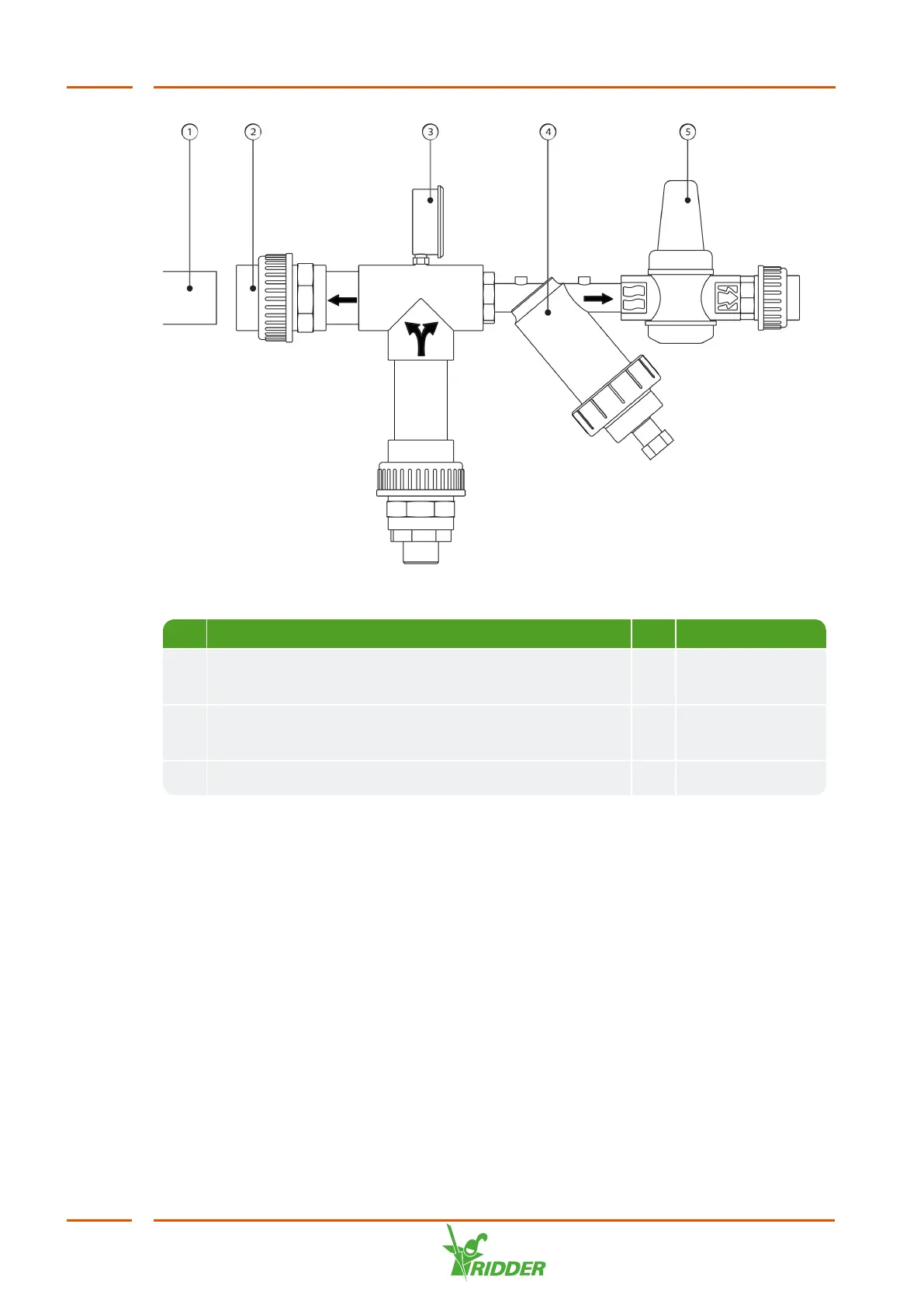

Figure 2-4 Pressure module with filter

No. Description No. Description

1 Dummy pipe for transport 4 500-micron

screen filter

2 Connection point for irrigation water distribution

pipe, 50-mm coupling

5 Pressure

regulator

3 Pressure gauge (0 - 6 bars) for filter (4 bars)

2.3.4 Measurement module (sensors)

The measurement module is located directly after the pressure module; it is a branch

of the supply channel of the dosing module. The measurement module is where the

sensors are located. After passing through the measurement module, the water is

returned to the mixing tank.
